Monday 19 February 2018

The new eyes of the Hellenic Navy Fleet: Miltech Hellas TDR-10 and IRB-75U

Written by D-Mitch

Miltech TDR-10 sensor on board Salamis, Hydra class frigate
A Greek company, named Miltech Hellas, has begun equipping Hellenic Navy vessels with its electro-optical (EO) sensors. The EO sensor has been the centerpiece of combat throughout the history of warfare; these sensors and their data processors often serve as the eyes of deployed military forces. An EO sensor except the surveillance duties and SAR operations, it is used as a tracking and fire control system while it can provide early warning and threat assessment to ensure efficient and effective response to emerging threats. Miltech Hellas S.A has developed an excellent EO sensor which has been tested intensively on Hellenic Navy ships with excellent results, the TDR-10. The dual-axis gyro stabilized platform mounted system (pan-tilt unit HI-PTU100-DSG), designed by Hellenic Instruments, is equipped with a high performance 3rd generation cooled sensor with a high resolution detector, a laser rangefinder (up to 10km), motorized thermal lens, GPS and a high resolution day camera full HD. The whole system weighs less than 15kg while approximately 9kg is the weight of the pan-tilt unit. A terrific system all Made in Greece!


The complete system
HI-PTU100-DSG system
HI-PTU100-DSG system

Being curious to learn more about the company and details about the sensor, I took the initiative to ask a permission to visit the company's headquarters. Surprisingly, I received a positive answer to my email few hours later.

Salamis frigate with the new sensor
Armatolos with the new sensor
The old stabilization system
on an Armatolos class
patrol boat. This specific
pan-tilt will be replaced
by the new one, PTU-100,
developed by the HI.



Polemistis gunboat with the Miltech sensor installed atop the bridge























Hydra, Hydra class frigate
Kasos, Pirpolitis class gunboat
The sensor equips three gunboats and one frigate of the Hellenic Navy which were lacking of such sensor of major significance. These boats are one vessel of the Armatolos class (Armatolos) and two boats of the Pirpolitis class (Polemistis and Kasos). Recently, one TDR-10, was installed also on one of the four Hydra class frigates, the Salamis, while 15 (!) more systems of the advanced model TDR-10A, a completely new system, will equip other warships of the Fleet (offset commitment by Raytheon). The first four systems are not part of the latest contract, thus they are excluded from the 15 new systems.

MLT-TDR-10 on Salamis
MLT-TDR-10 on Polemistis




MLT-TDR-10 on Polemistis





MLT-TDR-10 on Salamis
MLT-TDR-10 on Polemistis








MLT-TDR-10 on Salamis









Of those 15 new systems, the three will equip the rest of the Hydra class frigates and the remaining gunboat from the Armatolos class (Navmachos). Then there will be 11 systems to equip other ships. Such ships could be the five non-modernized Kavaloudis class FACM, the three non-modernized Kortenaer/Elli class frigates, the three S148 class patrol boats (former FACM) which perhaps will remain in active service for some years as patrol vessels, and highly unlikely landing ships of the Jason class, minehunters etc. The installation of the Miltech sensors will certainly boost the surveillance awareness and the capabilities of the Hellenic fleet.

Non-modernized Kavaloudis class FACM
Non-modernized Kortenaer class frigate











MLT-IRB-75U binocular sight
Miltech Hellas will provide the Hellenic Navy with another product (also offset commitment by Raytheon) that will increase even more the situational awareness, the IRB-75U extra-light binocular sight; 20 such products will be purchased. The system features a 3rd generation shutterless sensor, high-resolution detector, integrated laser range finder, integrated GPS and Day Camera, image and video recording to SD card, on-screen compass and tilt Indicator and others. But what kind of company is Miltech? Miltech Hellas is a modern defense industry in the area of high-technology thermal imaging systems, radio accessories, avionics, aircraft harnesses and other special purpose electronics applications. Miltech, operating since 1997, is one of the leading Greek companies in the defense sector, and has won many awards while has established partnerships with top defense companies such as Dassault, Thales Group, EADS, BAE, Eurocopter, KMV, Rheinmetall and more.

The company has developed among others:
  • Aircraft displays such as the famous HDD-55L for Mirage 2000 fighters of Greece, Egypt and Peru. The new completely Made in Greece (!) HDD replaces the old CRT without the need to modify the aircraft or the associated aircraft systems!
  • Thermal imaging devices such as naval sensors (TDR-10/10A), thermal MBT/APC driver’s periscope, thermal sights for rifles and machine guns etc.
  • Tactical communication equipment (loudspeakers equip Hellenic Navy vessels), static converters and electronic (proximity) fuzes for main battle tanks and naval guns such as the OTO Melara 76.2mm.
  • Gun Kit assembly, Electrical harnesses and Power Boxes for the 4th generation fighter Rafale! Miltech is the only company outside France which is involved in the Rafale construction and till today is the only manufacturer of those systems providing with its products the air forces of Egypt, France and India!
  • Electrical boxes for the battle tank Leopard 2, towed targets for the air force, command consoles for the Crotale SHORAD, bay and subfloor harnesses for the Eurocopter NH-90 and others.
Rafale gun kit assembly
Tactical field telephones and others



Proximity fuzes and others
TDK-39A towed target

PLS-2W loudspeaker
VPS-19 IR vehicle periscope
HDD-55L (left) and CRT right









HI-PTU100-DSG
HDD-55L on a HAF Mirage 2000 fighter.
Photo by Ioannis Lekkas
The manufacturing facility is located 20 km east of Athens, near the international airport of Athens. It is housed in a very modern multi-storey building, reminding a lot American companies, with state of the art production and testing equipment as well as increased security measures. The company employs 60 Greek engineers, developers and programmers. Miltech, has sold its products, such as weapon thermal sights and avionics, except to the Hellenic Armed Forces, to the Armed Forces of Saudi Arabia, Egypt, Qatar and others.  I was very surprised that a Greek company not only has developed such sophisticated systems but also beats its competitors, some of the largest defence contractors in the world! Miltech has received dozens of awards, among them are Greek Export Awards, National Recognition for Enterprise Excellence, Made in Greece Awards, Awards for Export Activities and International Presence, and others.


Award by the Hellenic Navy to the CEO of Miltech, Mr. C. Koutsos
Constantinos Koutsos, Miltech's CEO

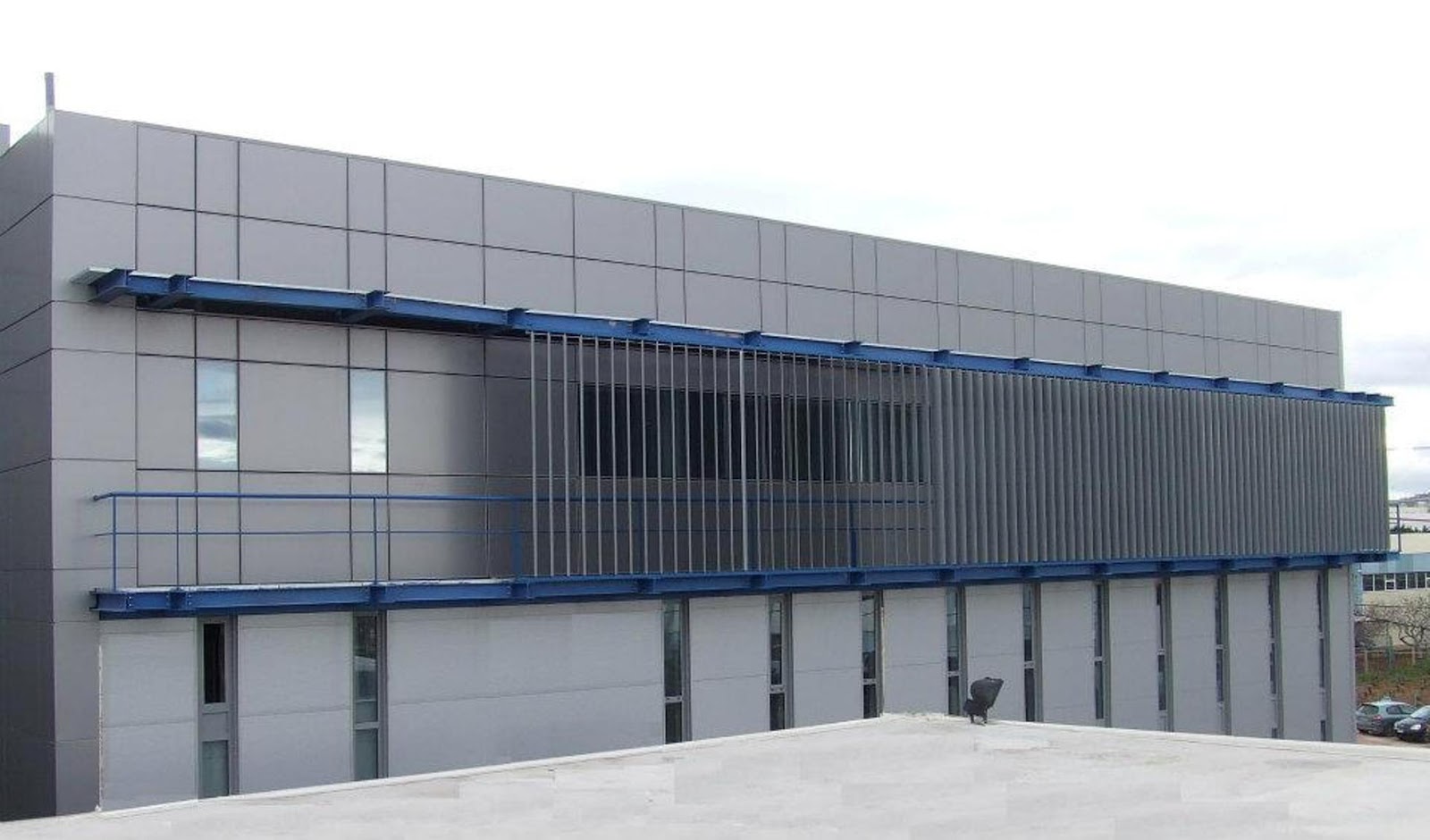

Miltech manufacturing facility
I would like to thank a lot Mr. Constantinos Koutsos, the man behind Miltech, the president and managing director of the company, for accepting my request and the two-hour (!) tour he offered me to his company. Mr. Koutsos is a brilliant, very active, multi-talented engineer and businessman, and I wish him the best. As a Greek myself, I felt really proud to see at first hand, a Greek leading manufacturer of hi-tech products for the defense market. I wish Miltech Hellas a lot of success!
MLT-TDR-10 on Polemistis, gunboat of Pirpolitis class. Photo by Miltech Hellas.

Additional sources:
