PHOTO GALLERY #29: Gokova, upgraded Gabya class frigate of the Turkish Navy and Generał Kazimierz Pułaski, O.H. Perry class frigate of the Polish Navy

Perrys! Turkish Gokova (left) and Polish Generał Kazimierz Pułaski frigates
In this post you will enjoy more than 90 photos of two frigates, Gokova, a Modernized Gabya (O. H. Perry) class frigate of the Turkish Navy and Generał Kazimierz Pułaski, an O.H. Perry class frigate of the Polish Navy. I took the photos during my visit to Kiel, on 21st and 22th of June, the first days of the 137th Kiel Week (see previous post about Kieler Woche). The two ships were some of the many visiting warships that had returned from the NATO BALTOPS (Baltic Operations) Exercise. Both ships are currently participating in the Standing NATO Maritime Group One (SNMG1). The Oliver Hazard Perry class is a class of guided missile frigates named after the U.S. Commodore Oliver Hazard Perry, the hero of the naval Battle of Lake Erie. The 136-meter warships were designed in the United States in the mid-1970s as general-purpose escort vessels inexpensive enough to be bought in large quantities to replace World War II-era destroyers and complement 1960s-era Knox-class frigates. Fifty-five (55) ships were built in the United States: 51 for the United States Navy (US Navy) and four (4) for the Royal Australian Navy. In addition, eight (8) were built in Taiwan, six (6) in Spain, and two (2) in Australia for their navies. The last remaining in active service with the US Navy, USS Simpson, was decommissioned on 29 September 2015. Former U.S. Navy warships of this class have been sold or donated to the navies of Bahrain (1), Egypt (4), Poland (2), Pakistan (1), Taiwan (10), and Turkey (8).

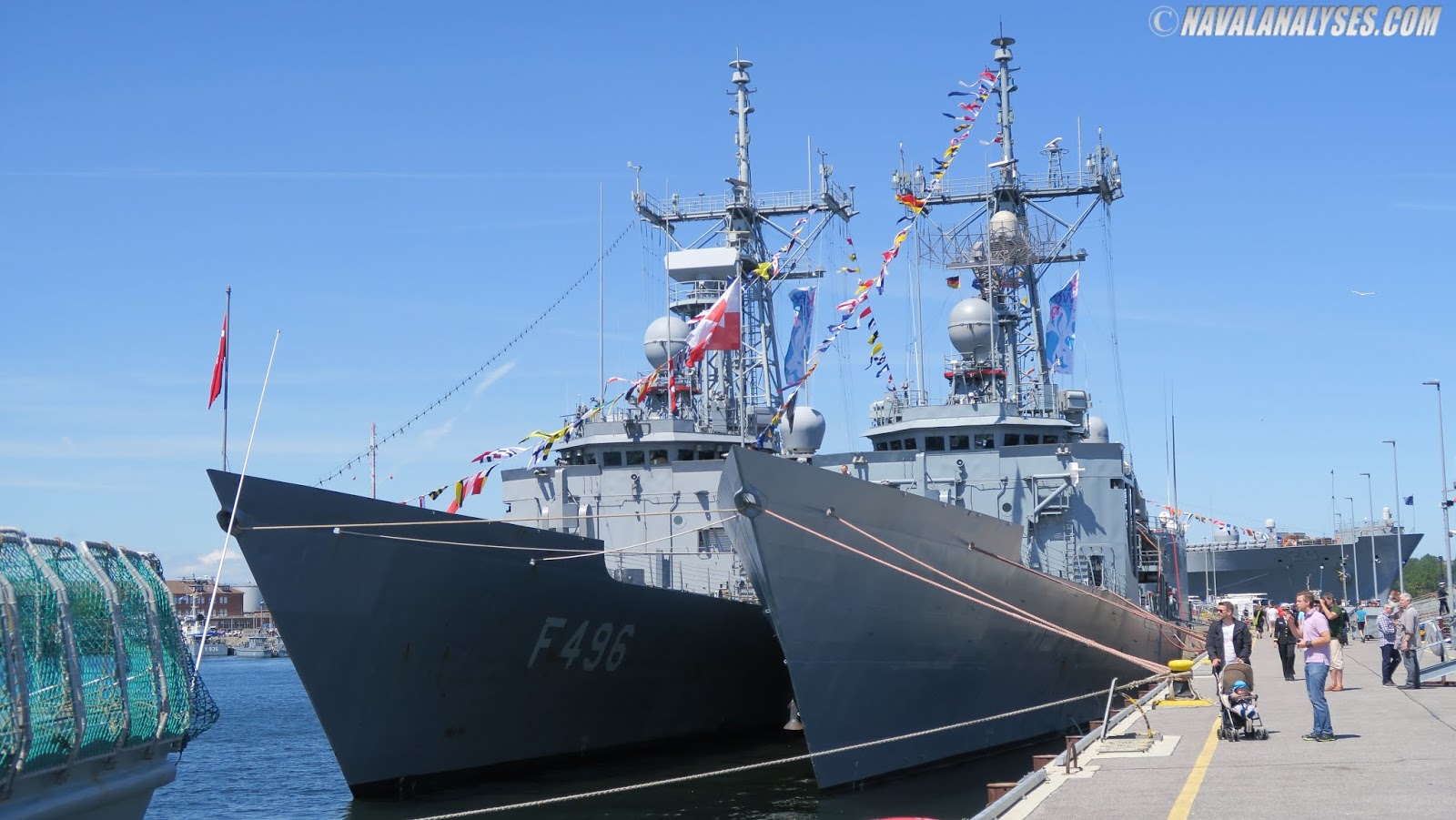

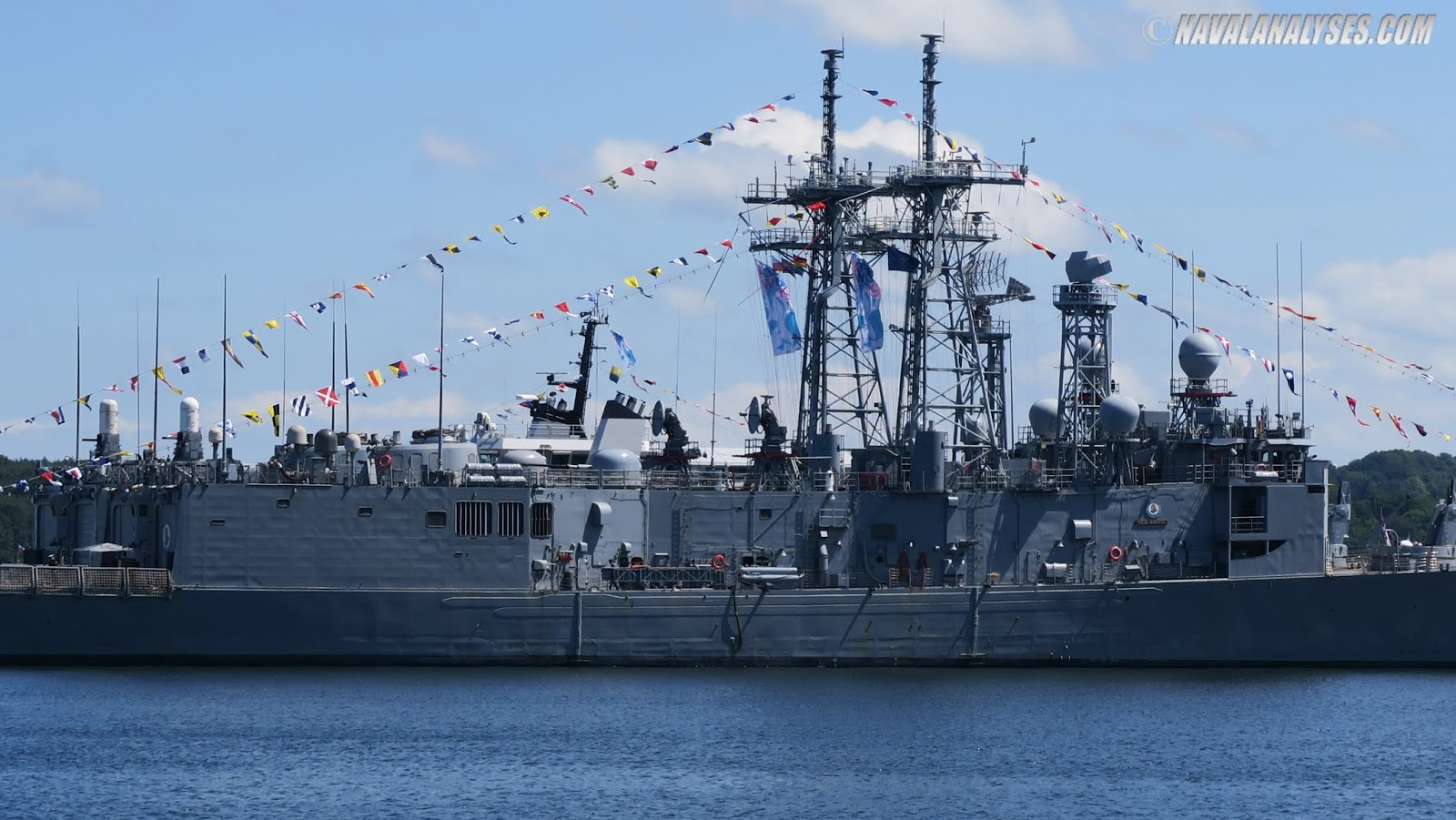

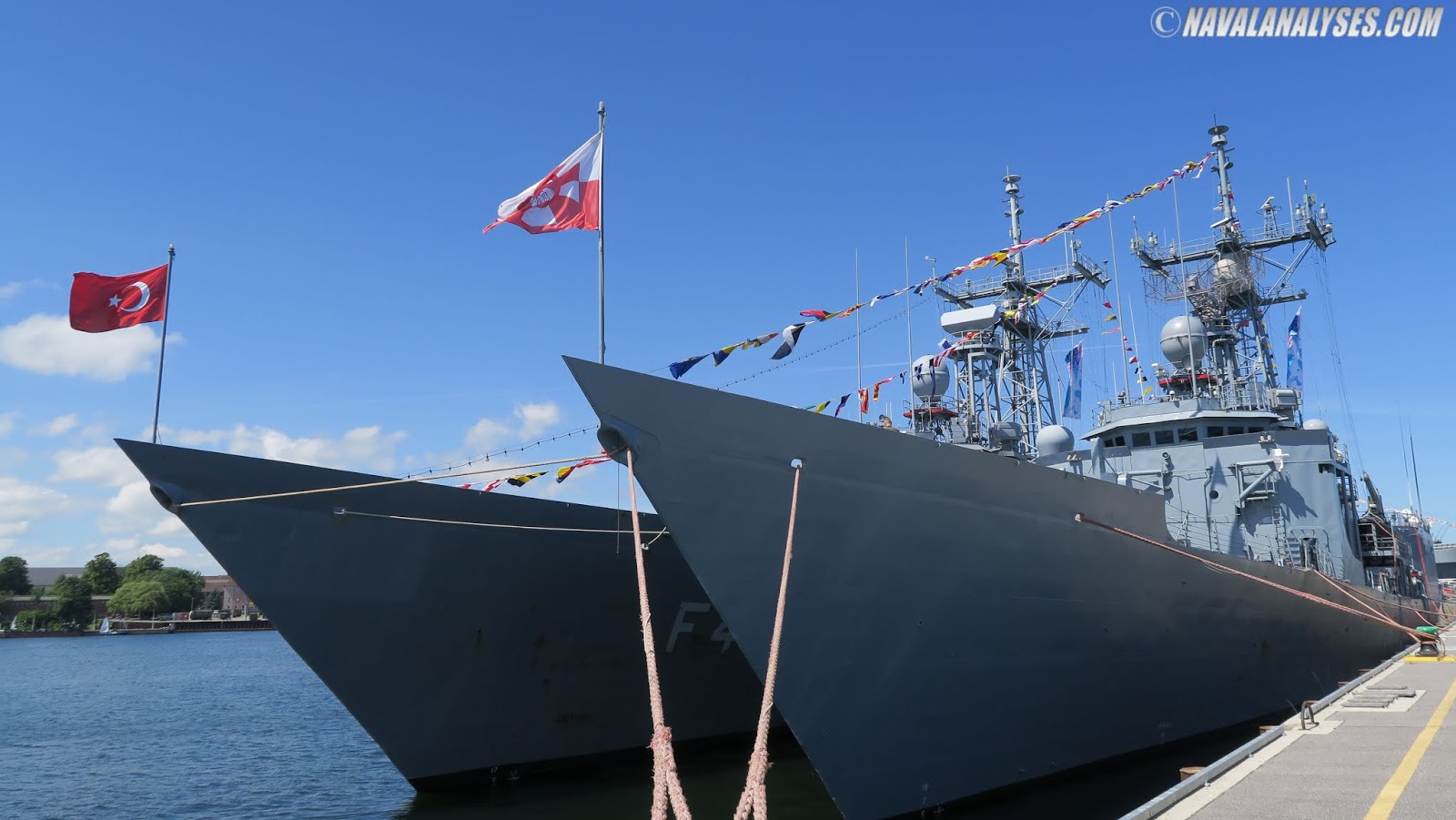

Turkish Gokova (front) and Polish Generał Kazimierz Pułaski frigates

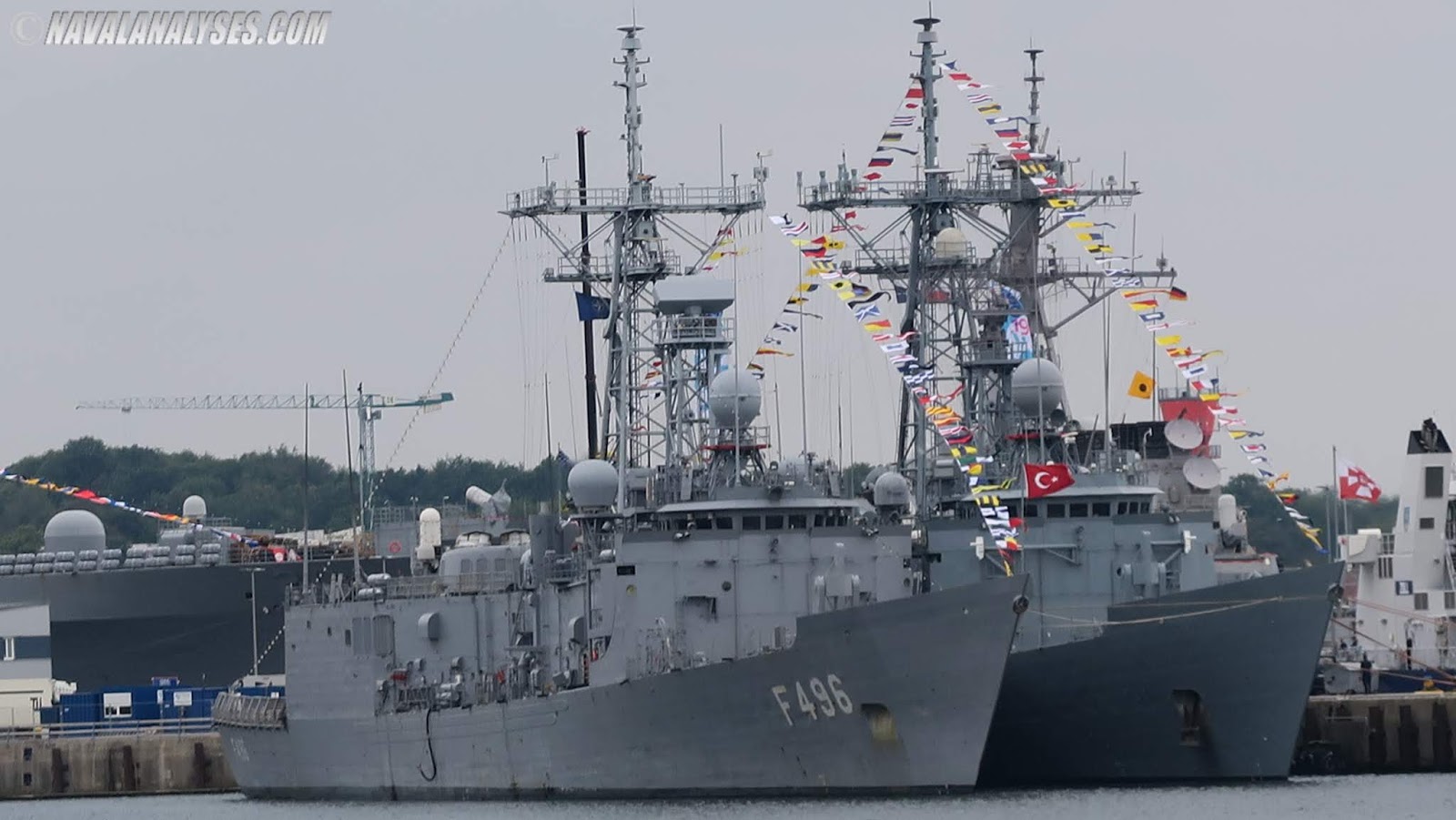

The two Perrys part of SNMG1

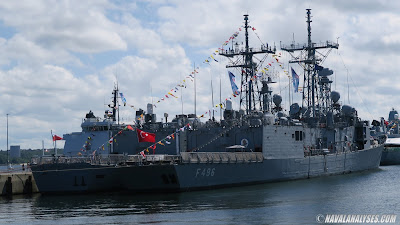

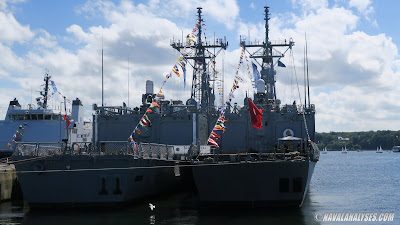

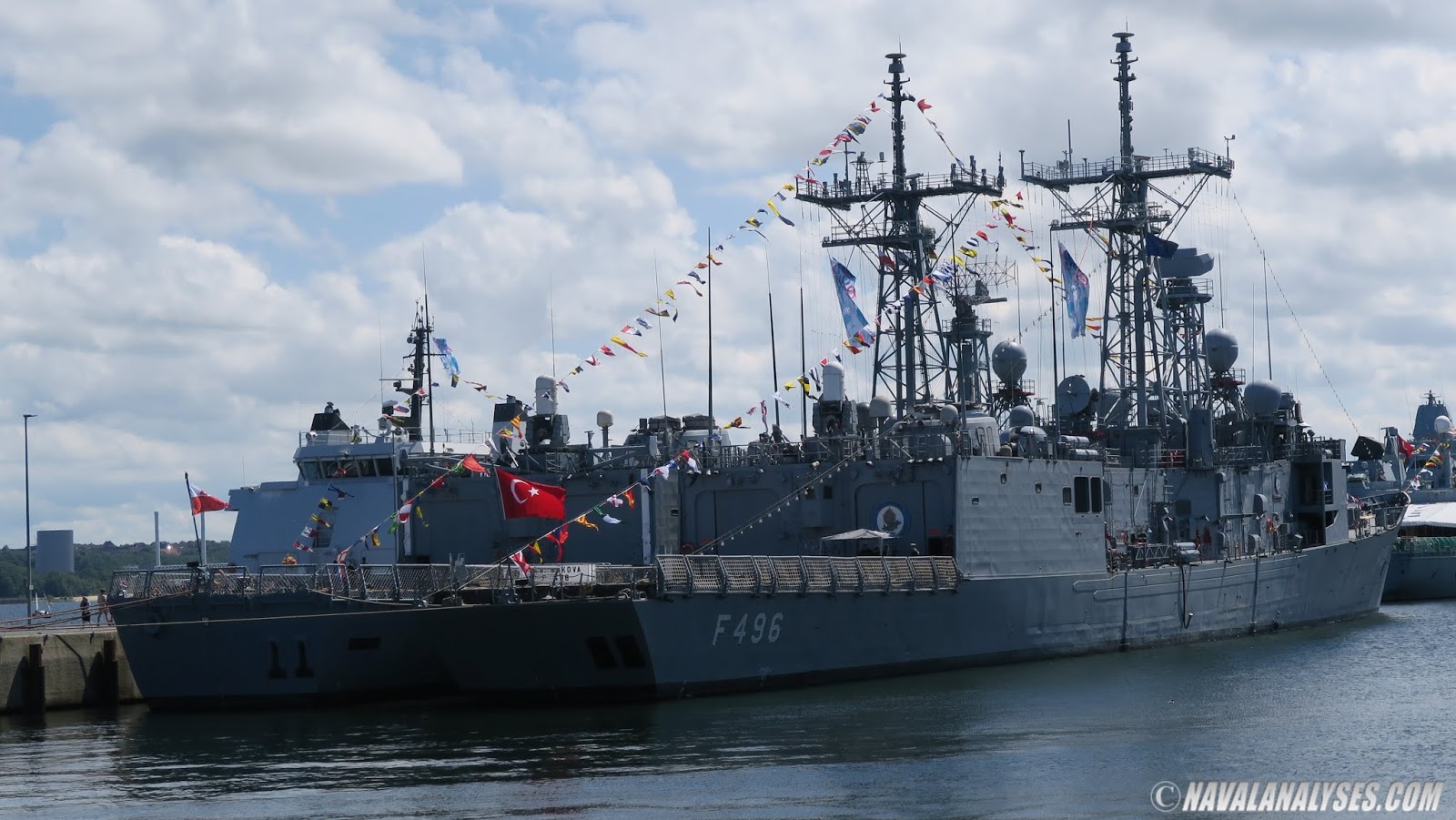

The two Perrys in Kiel Naval Base
I chose to include in a single post both ships in order to show the differences between the two vessels. Of the eight Gabya-class frigates in service with the Turkish Navy , the first four vessels have been modernized and upgraded extensively. The four vessels were fitted with an 8-cell Mk41 vertical launcher system (VLS) situated in front of the existing Mk13 SM-1 surface-to-air missiles (SAM) launcher, making a total of 32 RIM-162 Evolved Sea Sparrow Missile (ESSM) SAM. Moreover, a new Thales SMART-S Mk2 3D radar has replaced the AN/SPS-49(V)4 air-search radar.The ships have received upgrades including the GENESIS advanced combat management system (CMS), the Aircraft Ship Integrated Secure and Traverse System (ASIST), a system that equips the majority of Turkish major surface combatants, so they can accommodate an S-70 helicopter in extreme sea states, modifications on their Mk92 director and Aselsan-made SATCOM antennas. Their Phalanx close-in weapon system (CIWS) will also be upgraded in the near future to the most advanced configuration, the Block 1B Baseline 2. On the contrary, the Polish vessel has not received any kind of upgrades just some small additions like Orbit SATCOM and navigation radars.

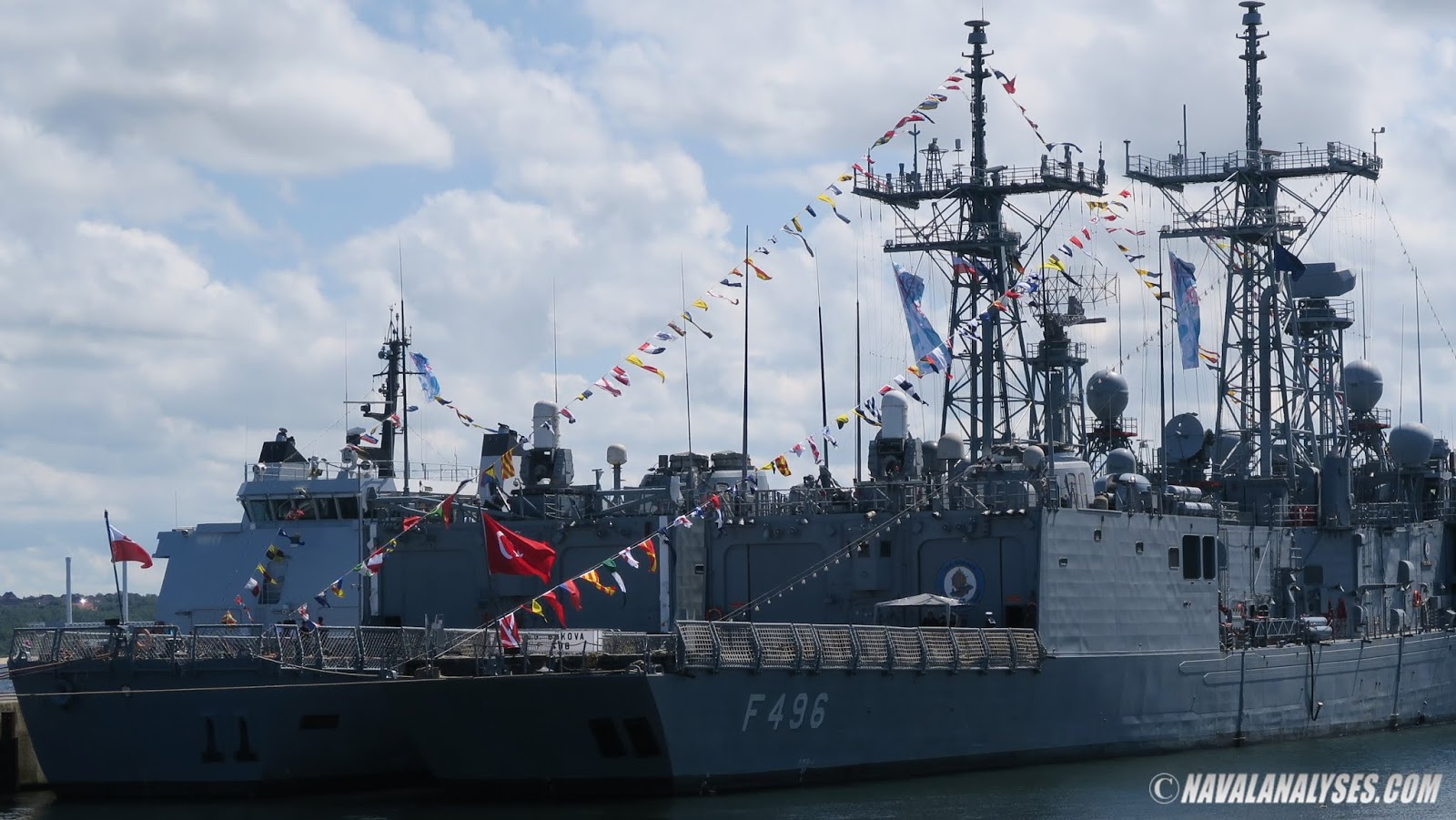

The two Perry class frigates; at the left is the modernized Turkish vessel

I should mention here that photos were forbidden aboard the Turkish vessel but I managed to take plenty of her from the Polish vessel. Nevertheless, inside the Turkish hangar the visitor could enjoy videos of the Turkish Navy and to receive leaflets or touristic maps. Enjoy photos!

Perry class frigates

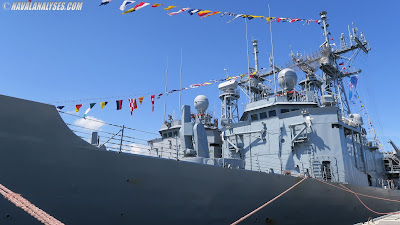

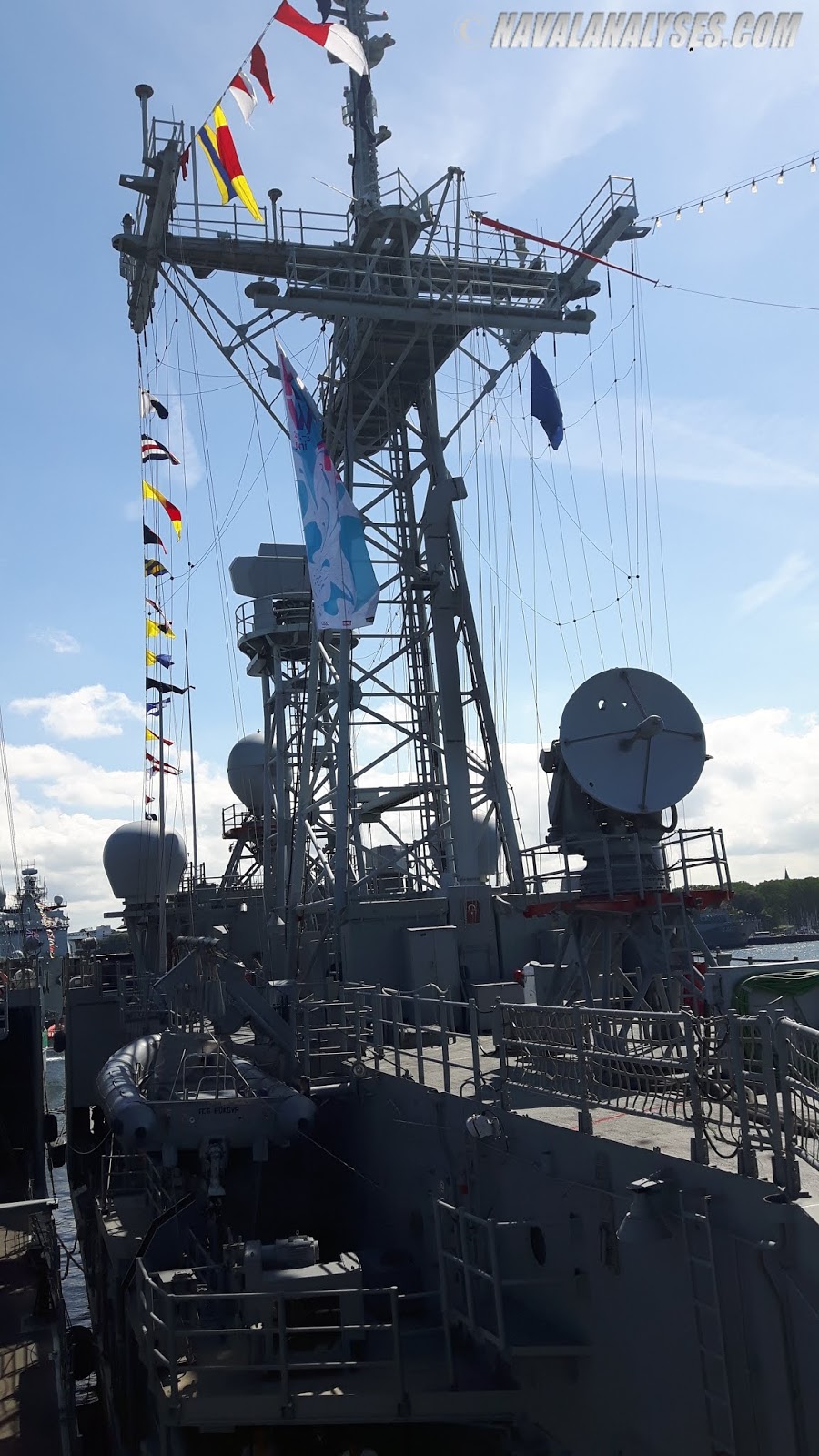

The masts of the ships

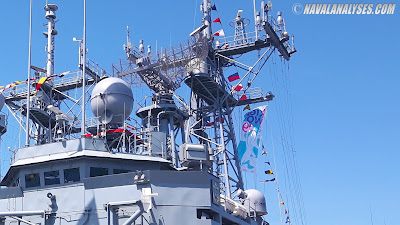

SMART-S Mk2 (left) and AN/SPS-49 (right)

Both retain their Mk92 FCS (eggs)
















Polish Navy Generał Kazimierz Pułaski frigate

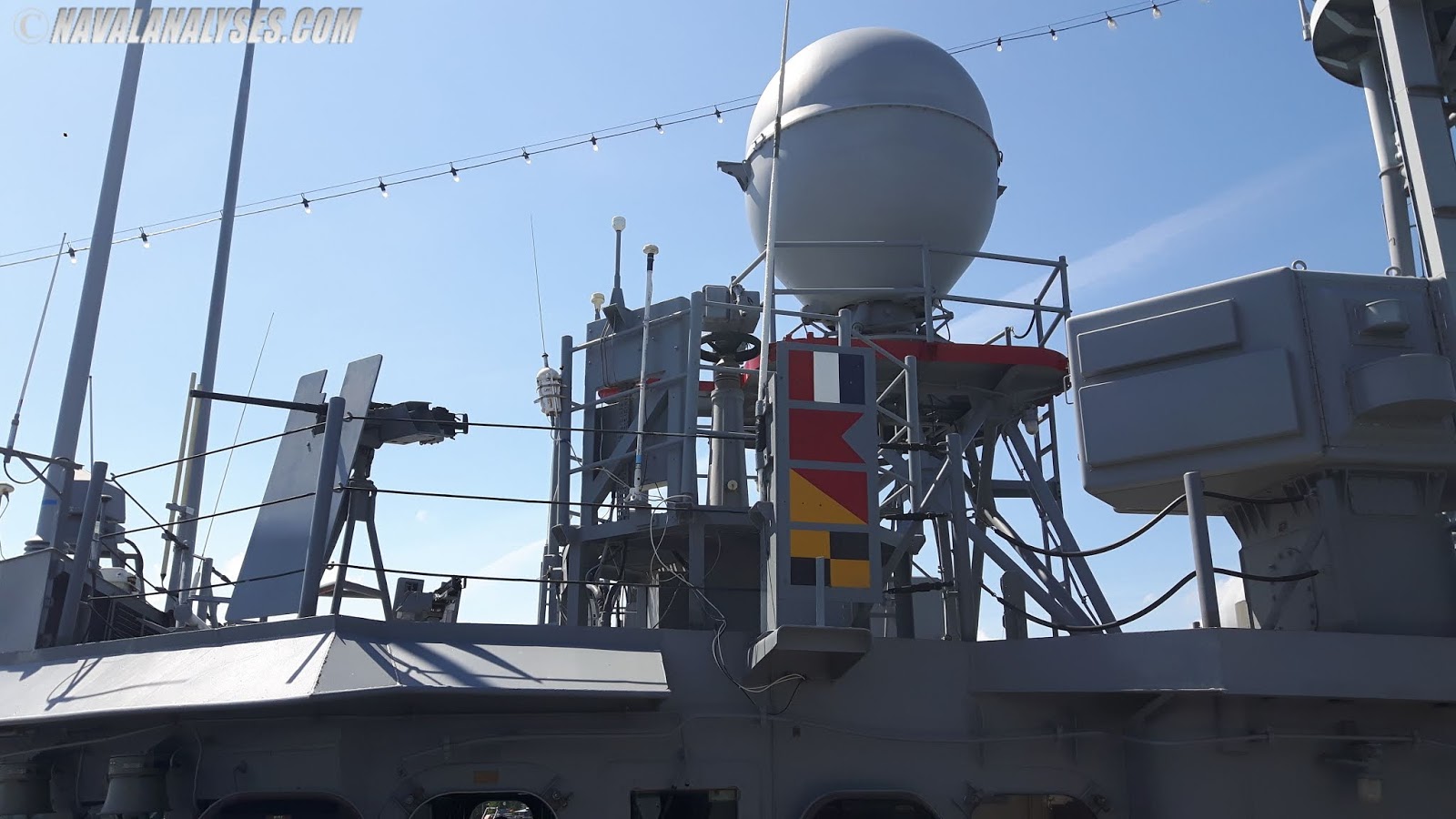

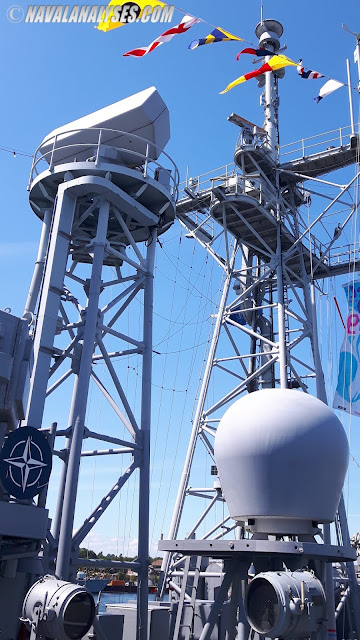

One of the two Orbit SATCOM is visible
Forward of the bridge is the SM-1 launcher


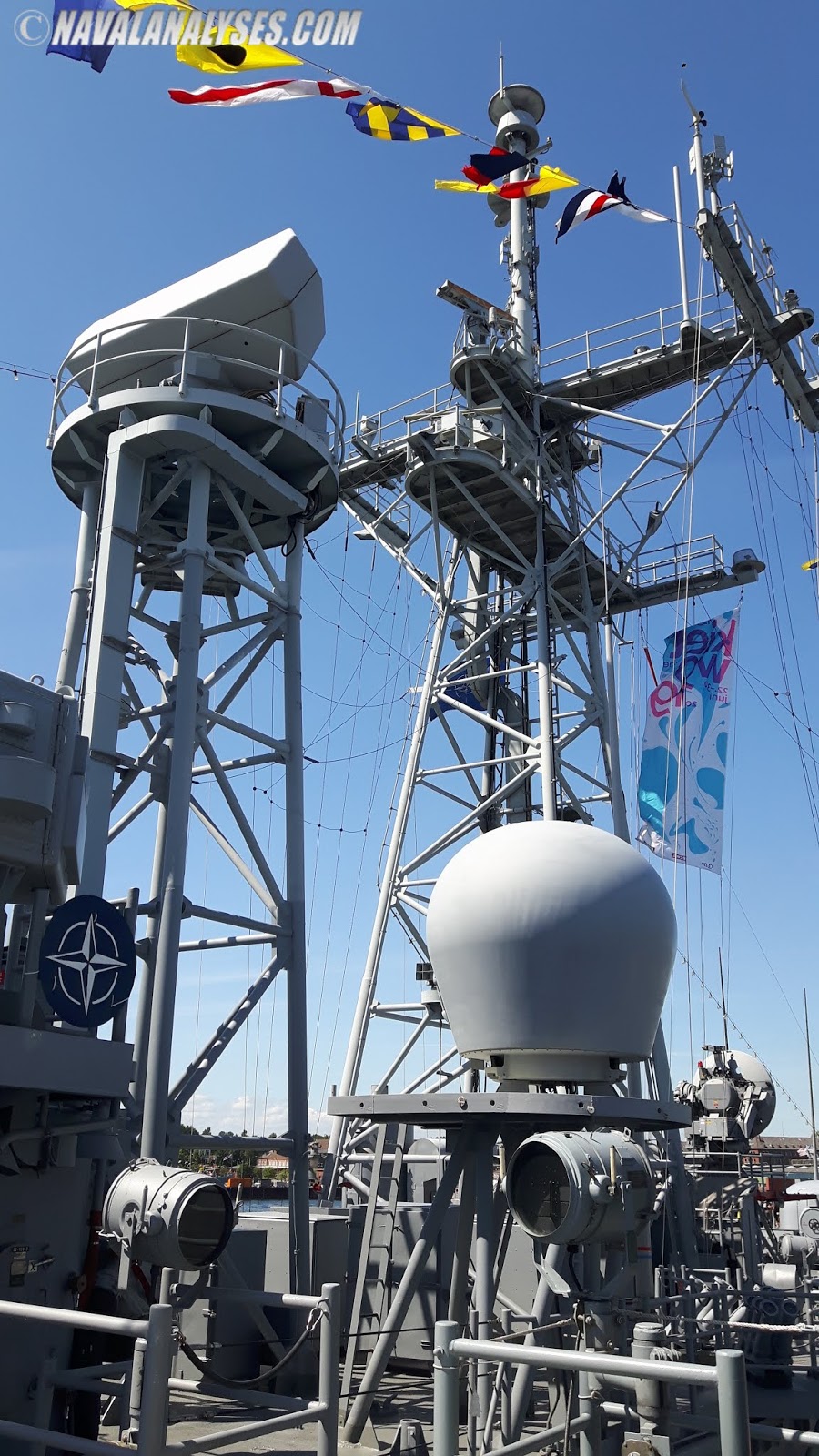

Mk92 FCS and AN/SPS-49 radar

Notice the variety of navigation radars on the Polish frigates

The crest of the Polish frigate





















The twin hangar of the Polish frigate













The one of the two helicopter hangars of the Turkish frigate

S-70 helicopter on the flight deck

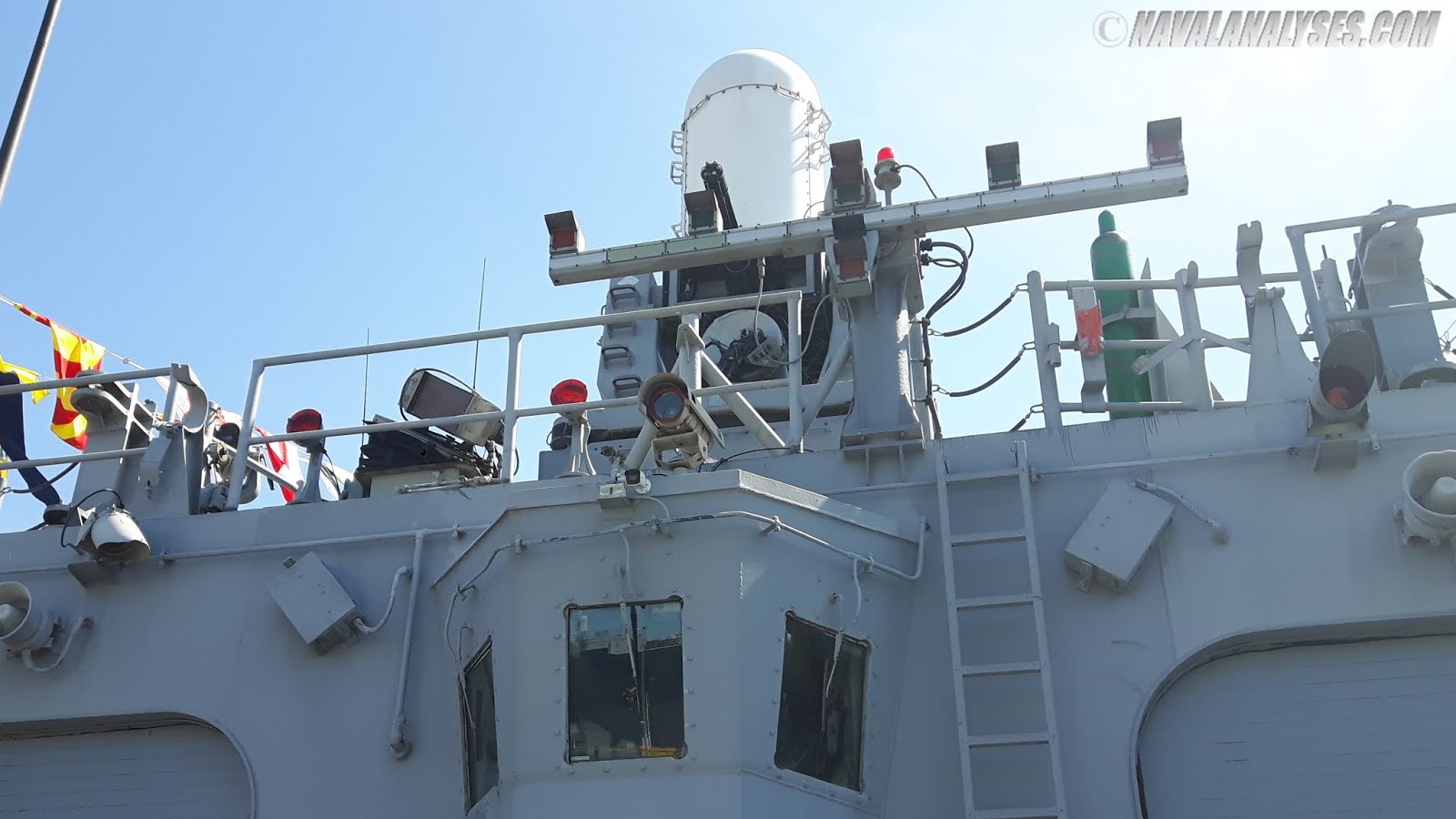

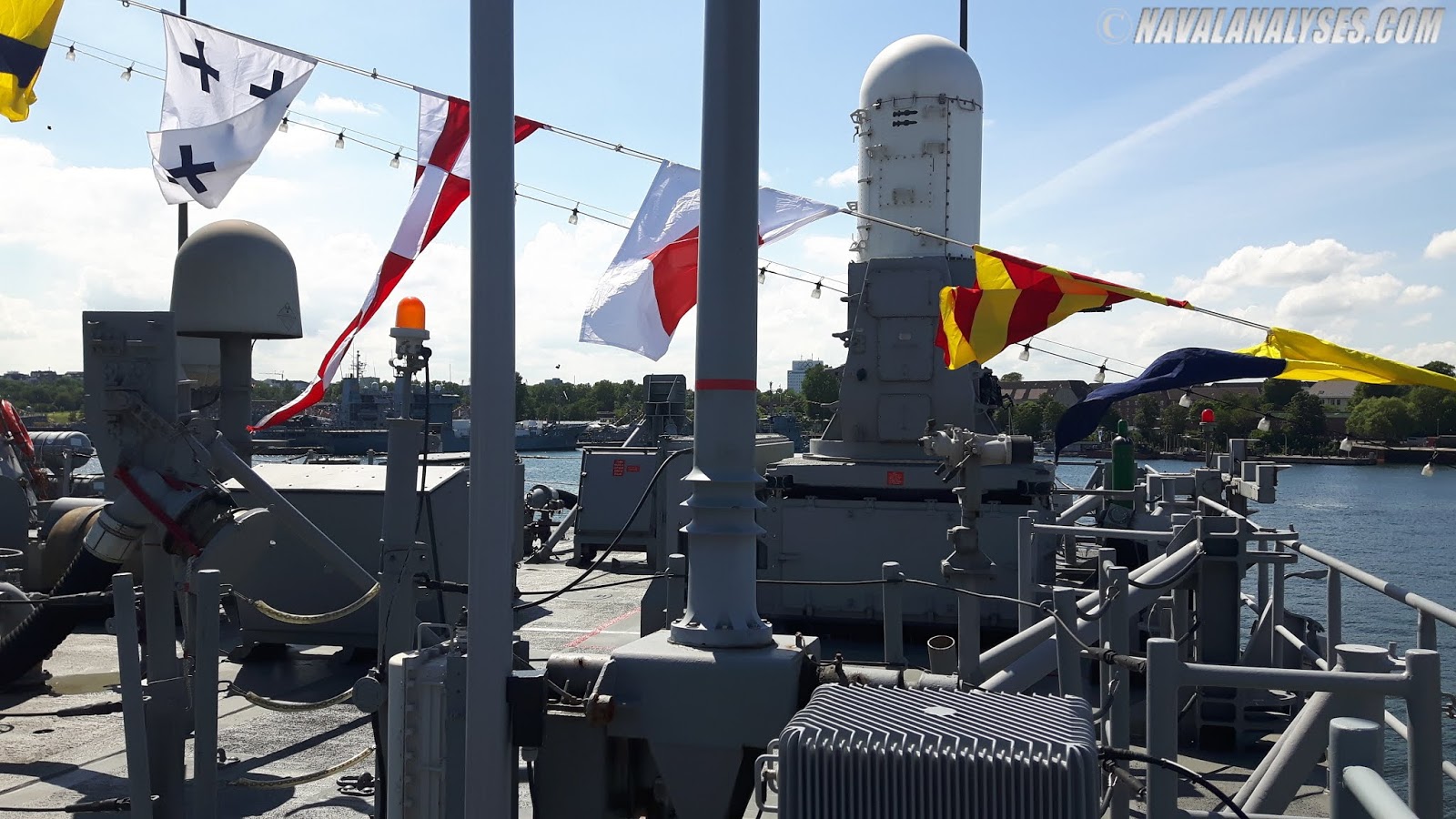

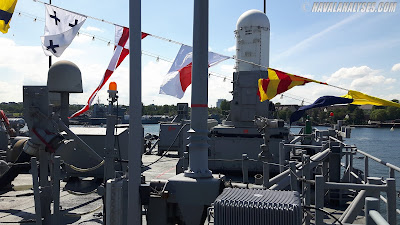

Phalanx CIWS (old block) atop the twin hangar

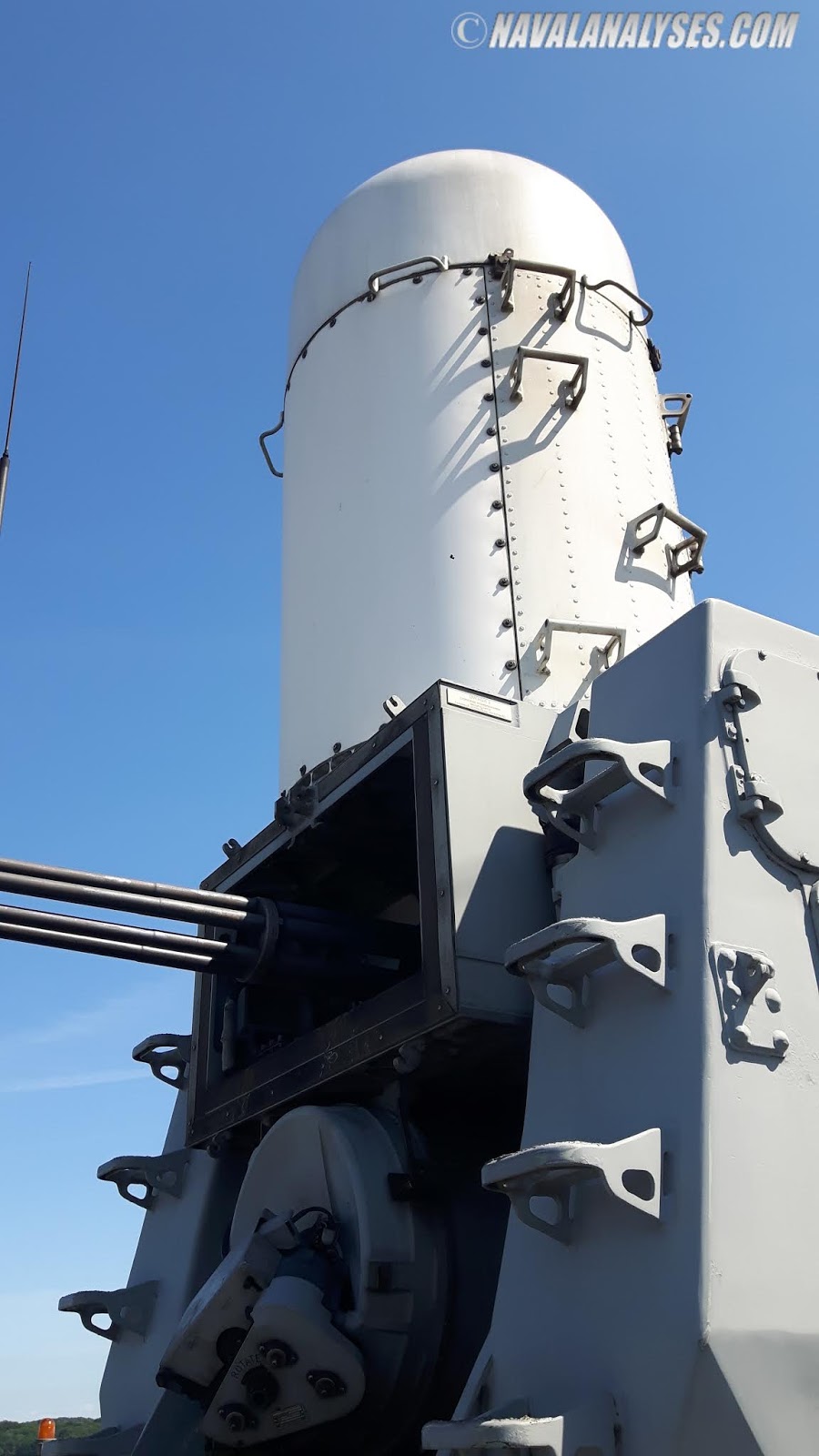

Closer photo of Phalanx CIWS

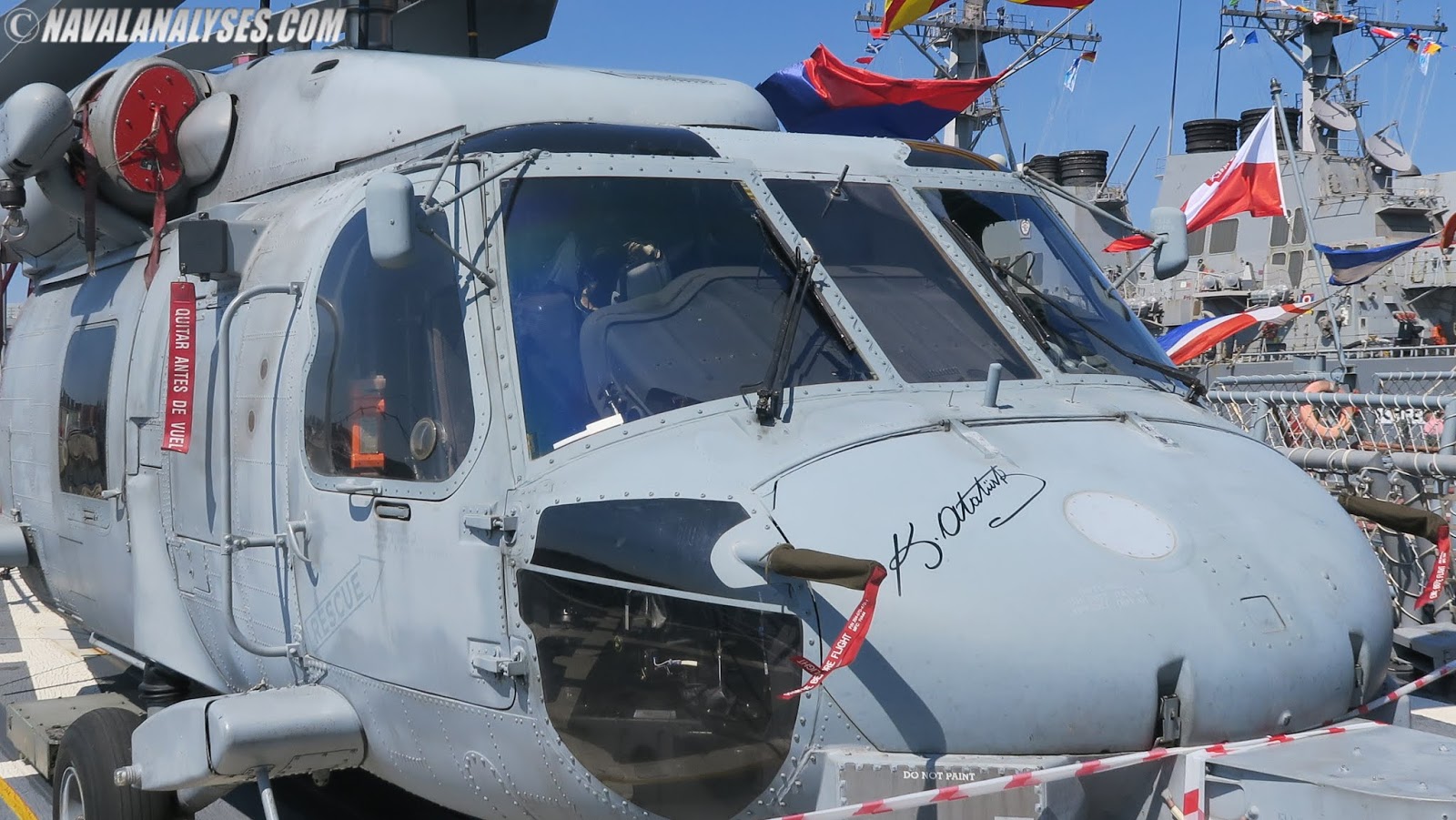

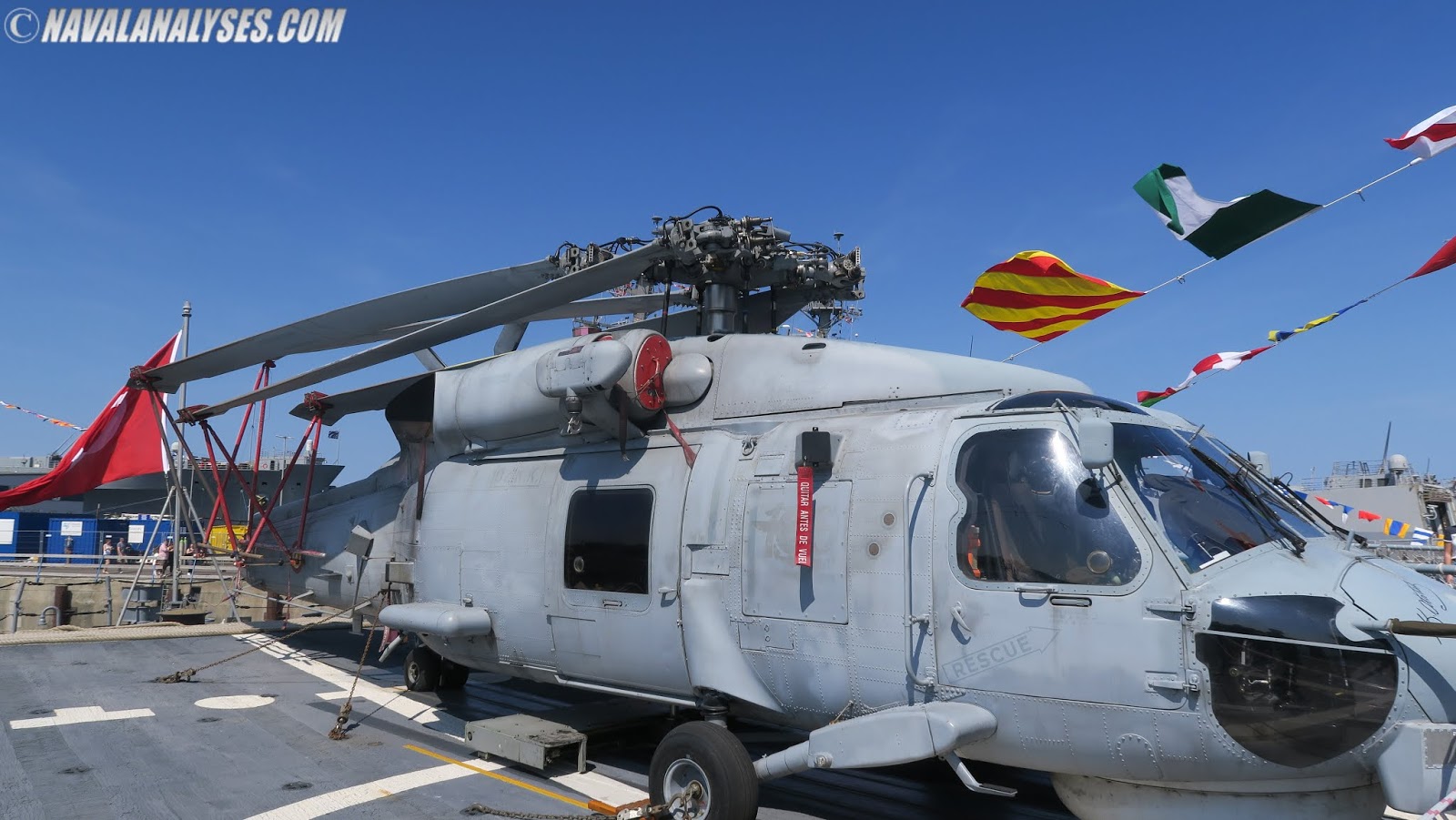

Turkish helicopter on Gokova











Notice the ASIST system below the S-70

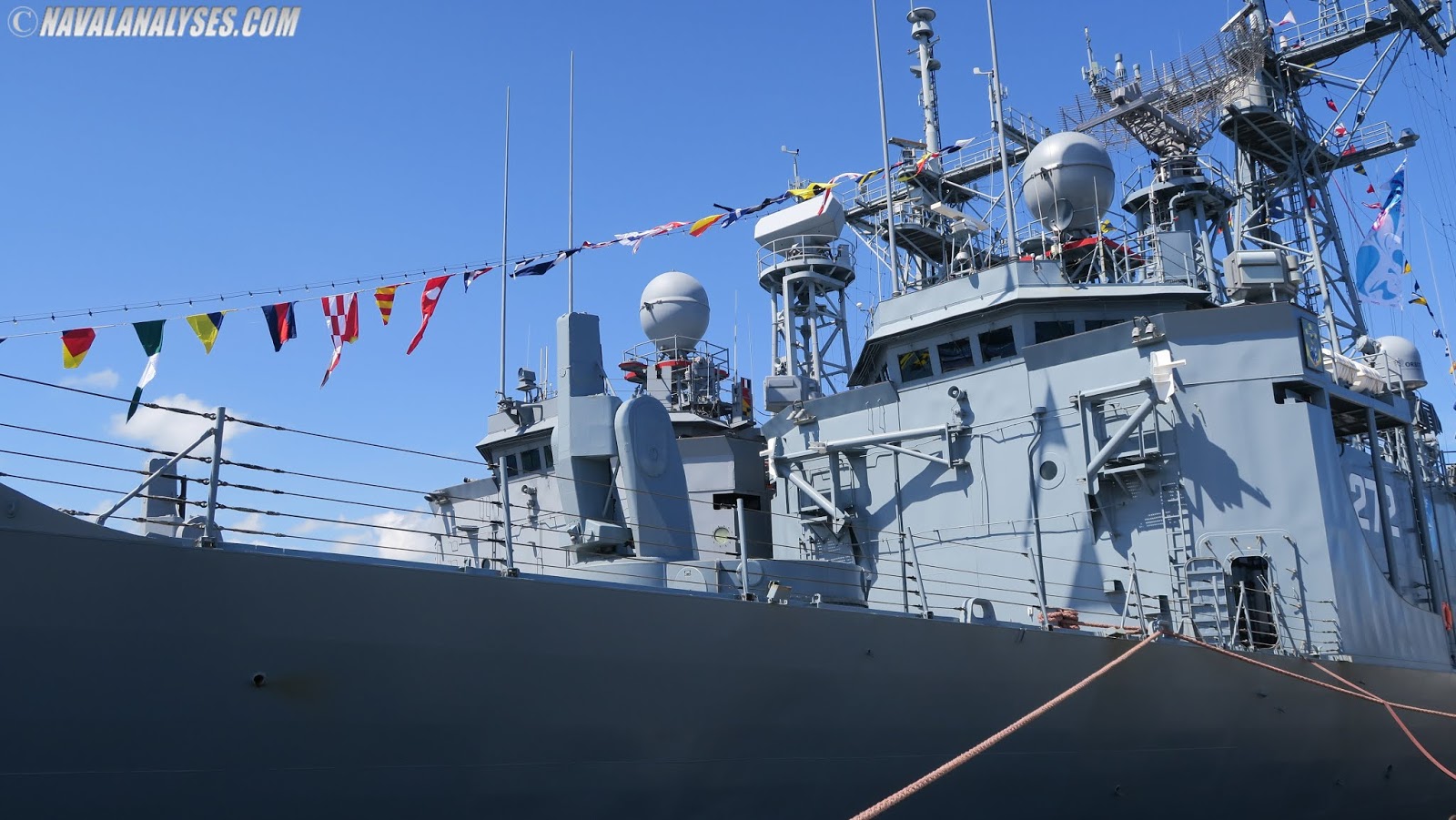

The differences between the two frigates are visible.

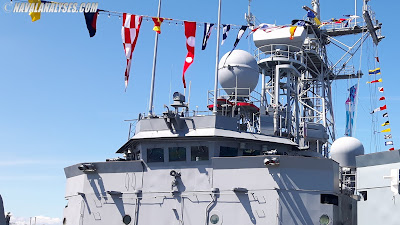

The bridge of the Turkish frigate
The SM-1 launchers of the frigates

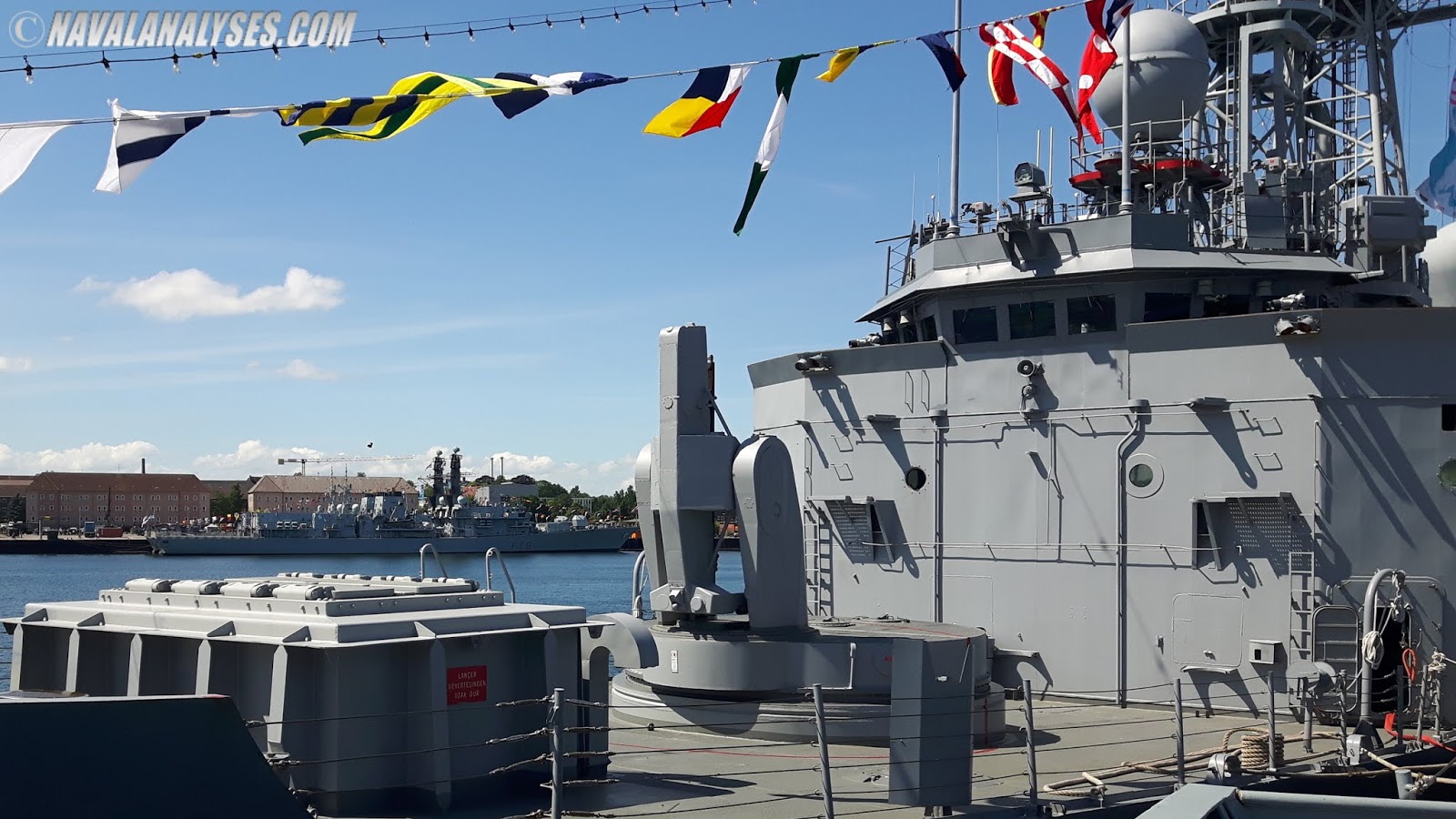

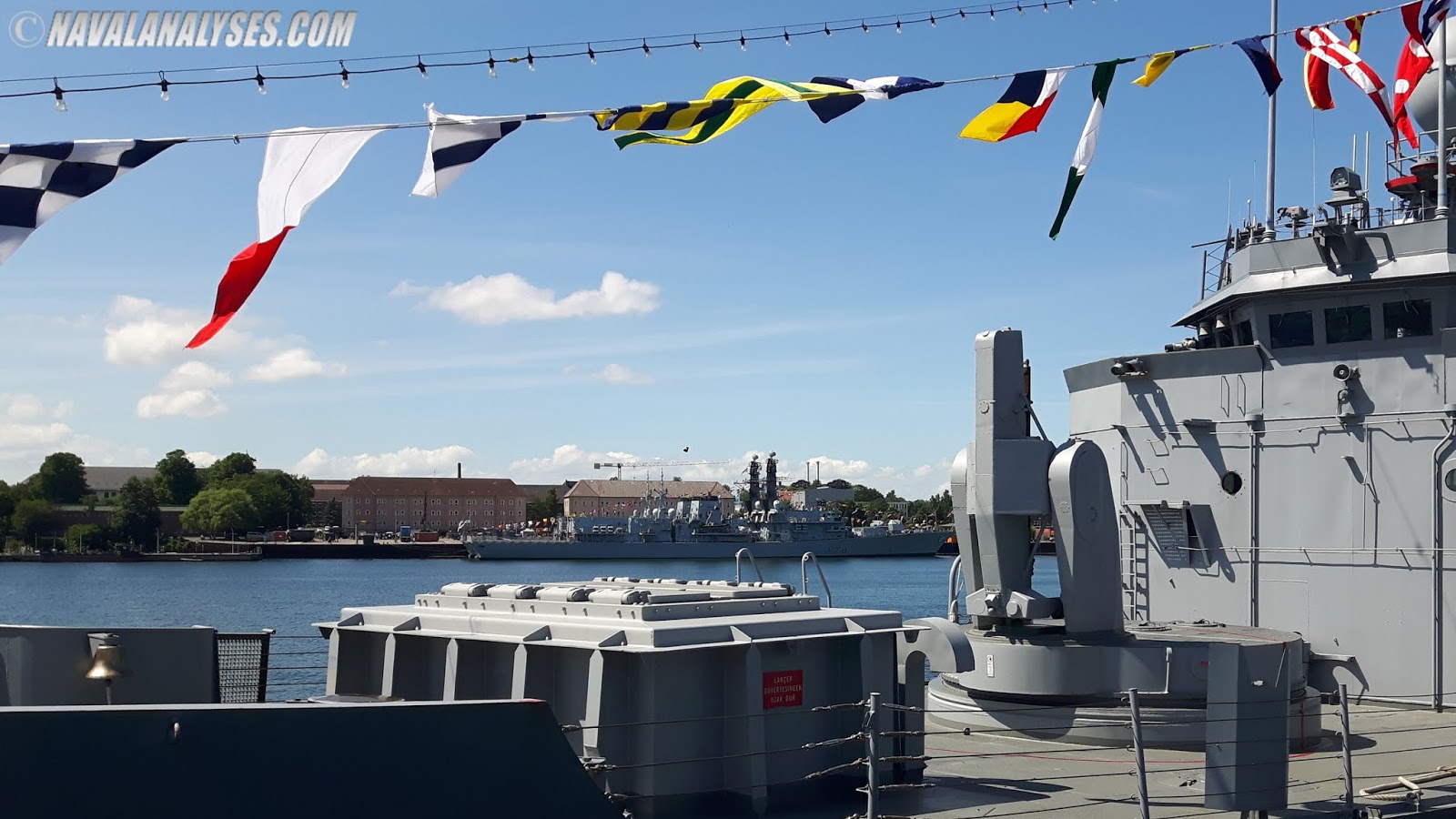

The Mk41 VLS of the Turkish ship

The Mk41 VLS can hold up to 32 ESSM

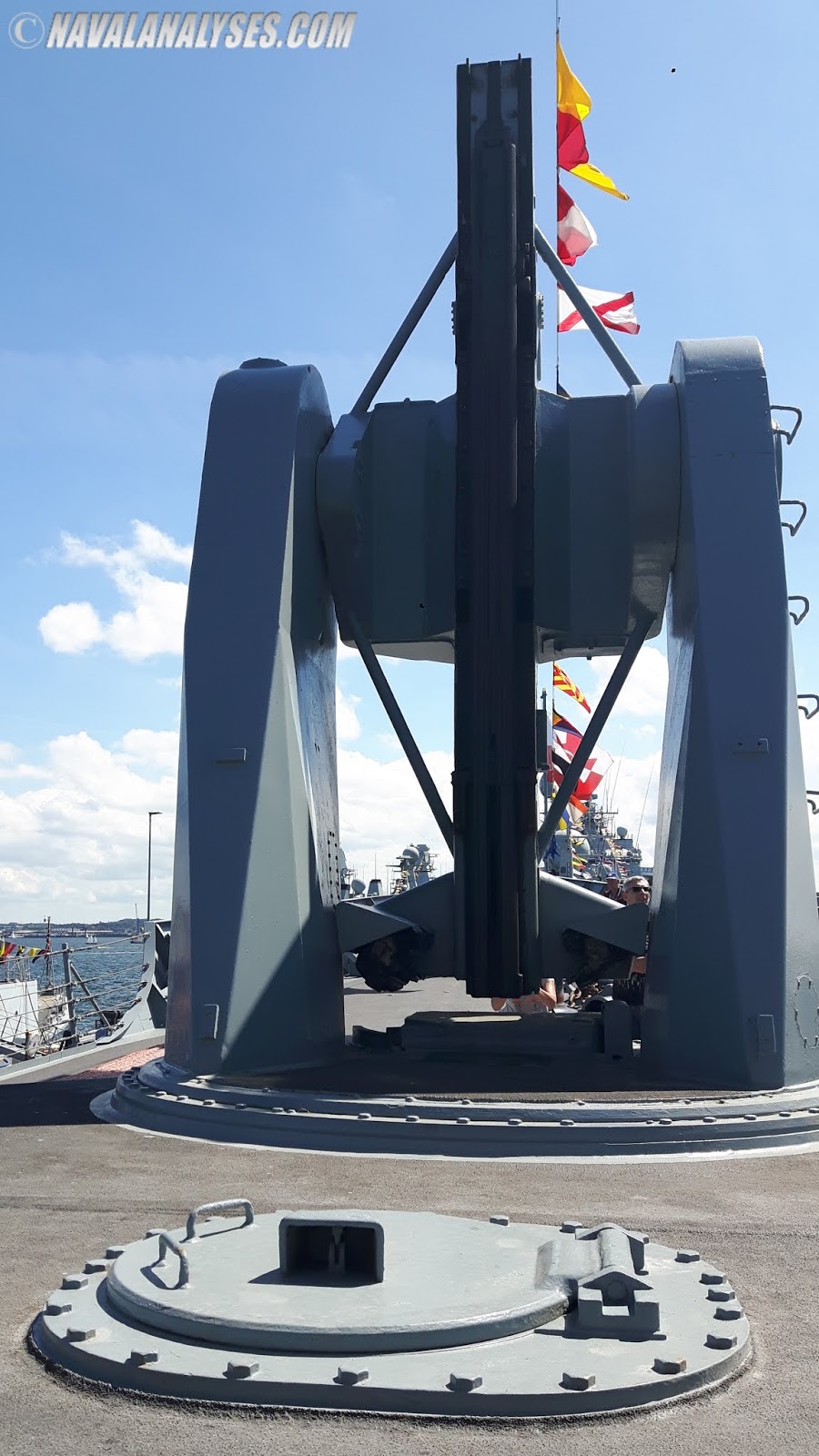

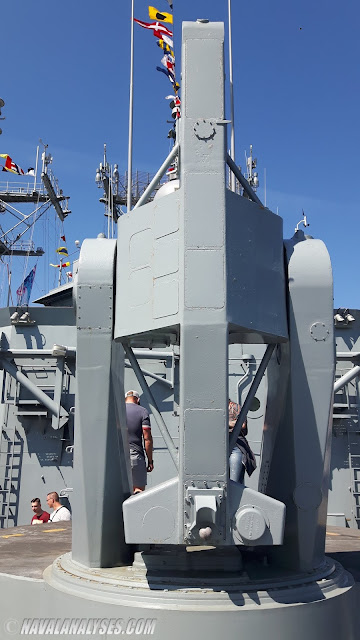

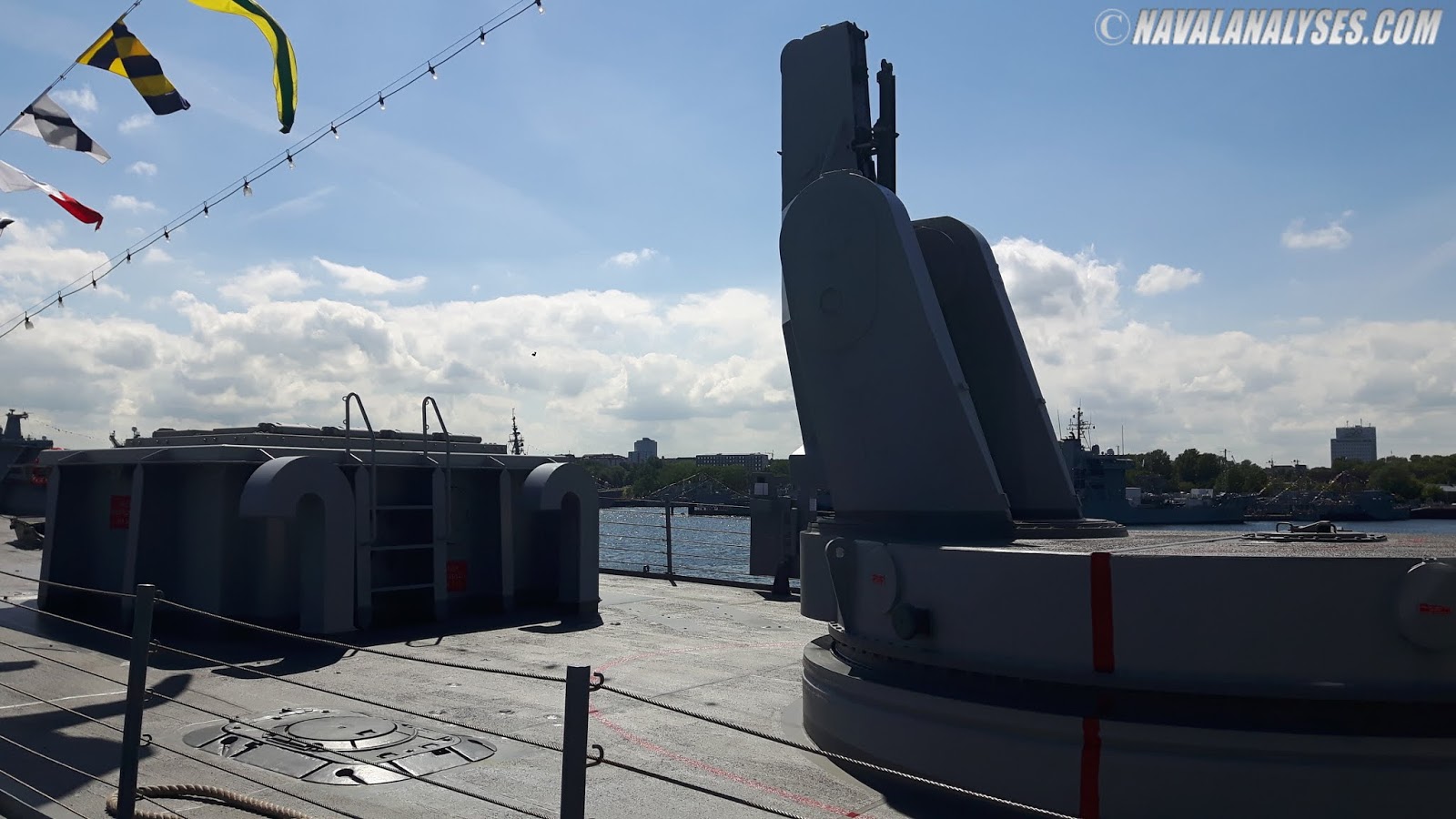

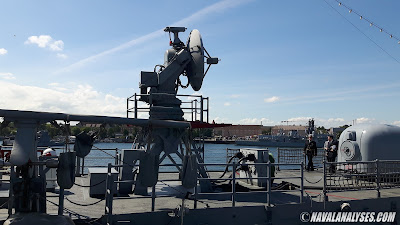

SM-1 SAM launcher
The bridge of the Polish frigate

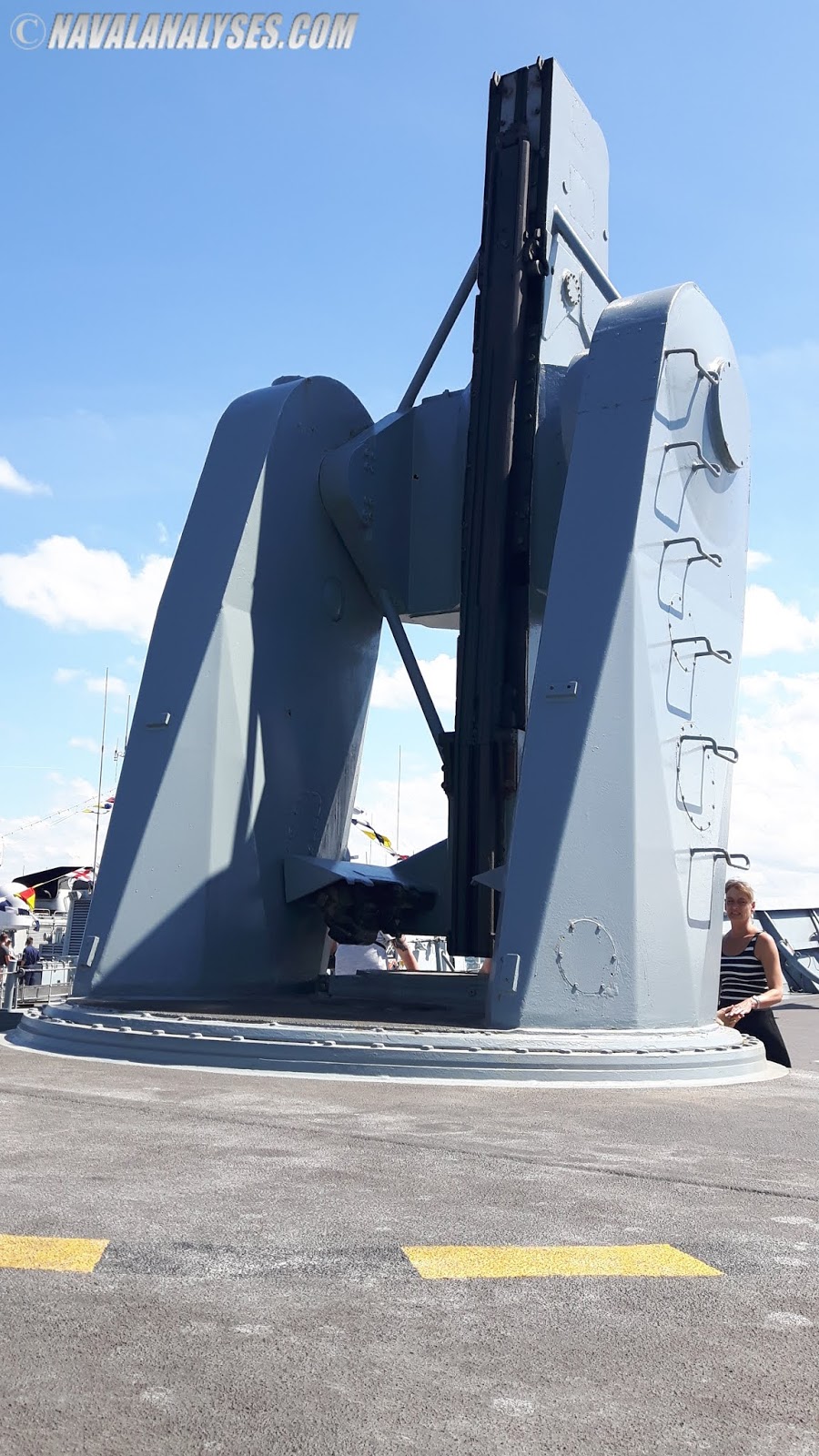

Polish SM-1 launcher
Polish SM-1 launcher
View of Gokova
Polish SM-1 launcher






The Turkish ship has by far much more capabilities to engage air targets with its 72 SAM!

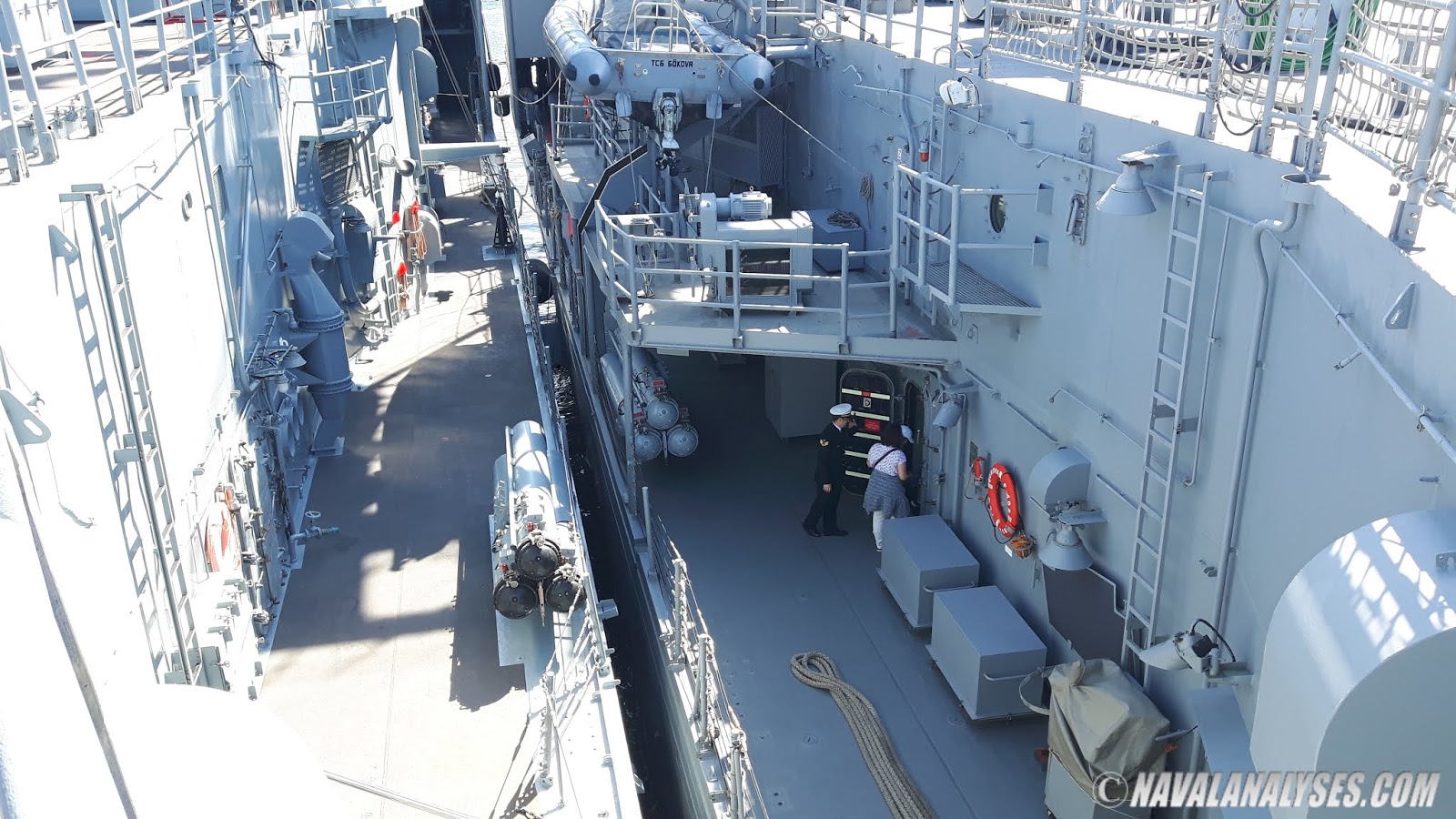

Port side of Pulaski
Triple torpedo launcher
TT launcher
Triple torpedo launcher

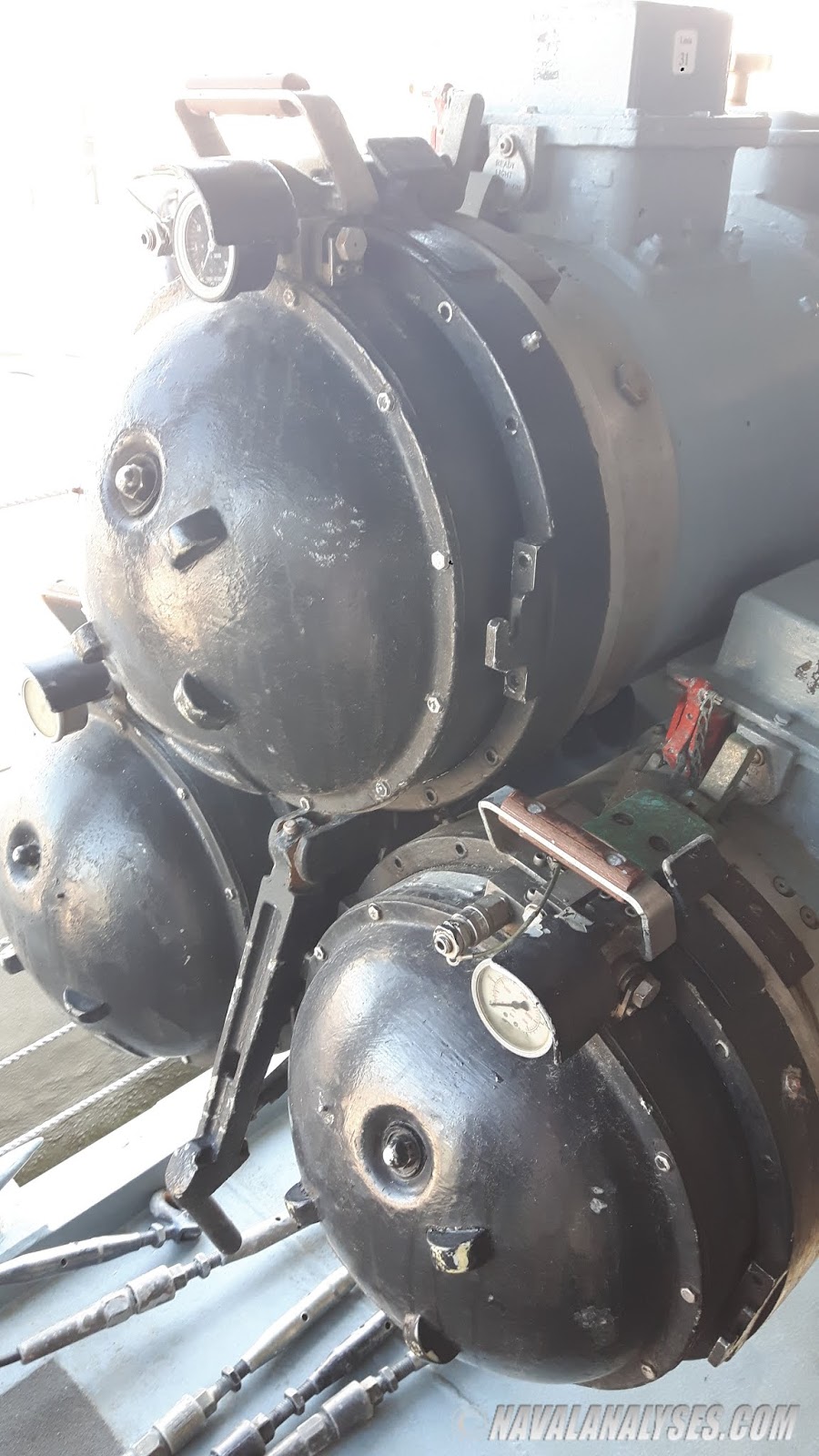

Mk32 ASW triple torpedo launcher













SMART-S Mk2 and ASELSAN SATCOM
The Turkish ship has four M2HB HMGs


View from the Polish frigate's bridge of the Mk13 launcher

The bow deck of the Turkish ship that contains all of its SAM launchers.
Notice the mount (with the shield) for MG3 machine gun.

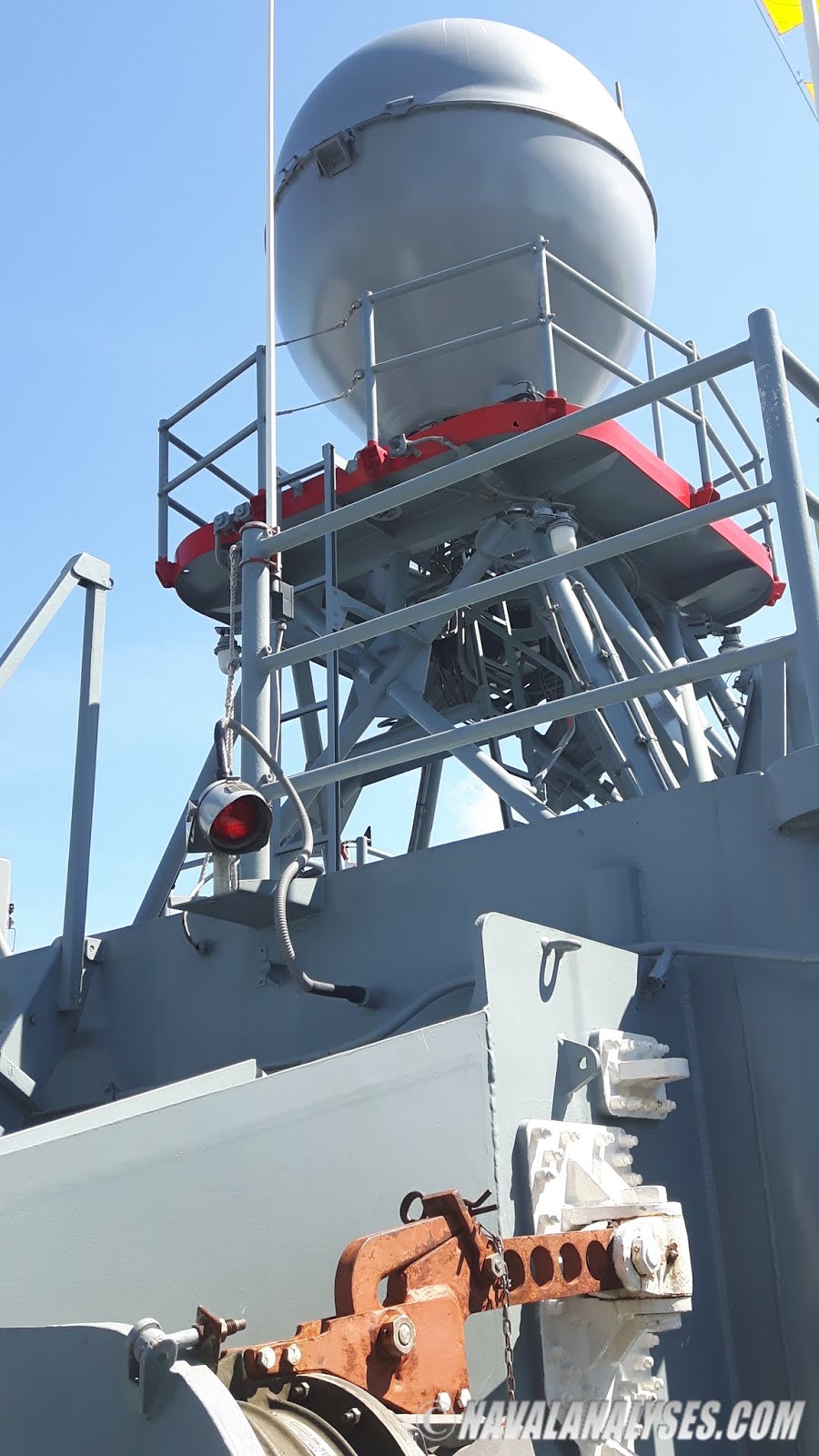

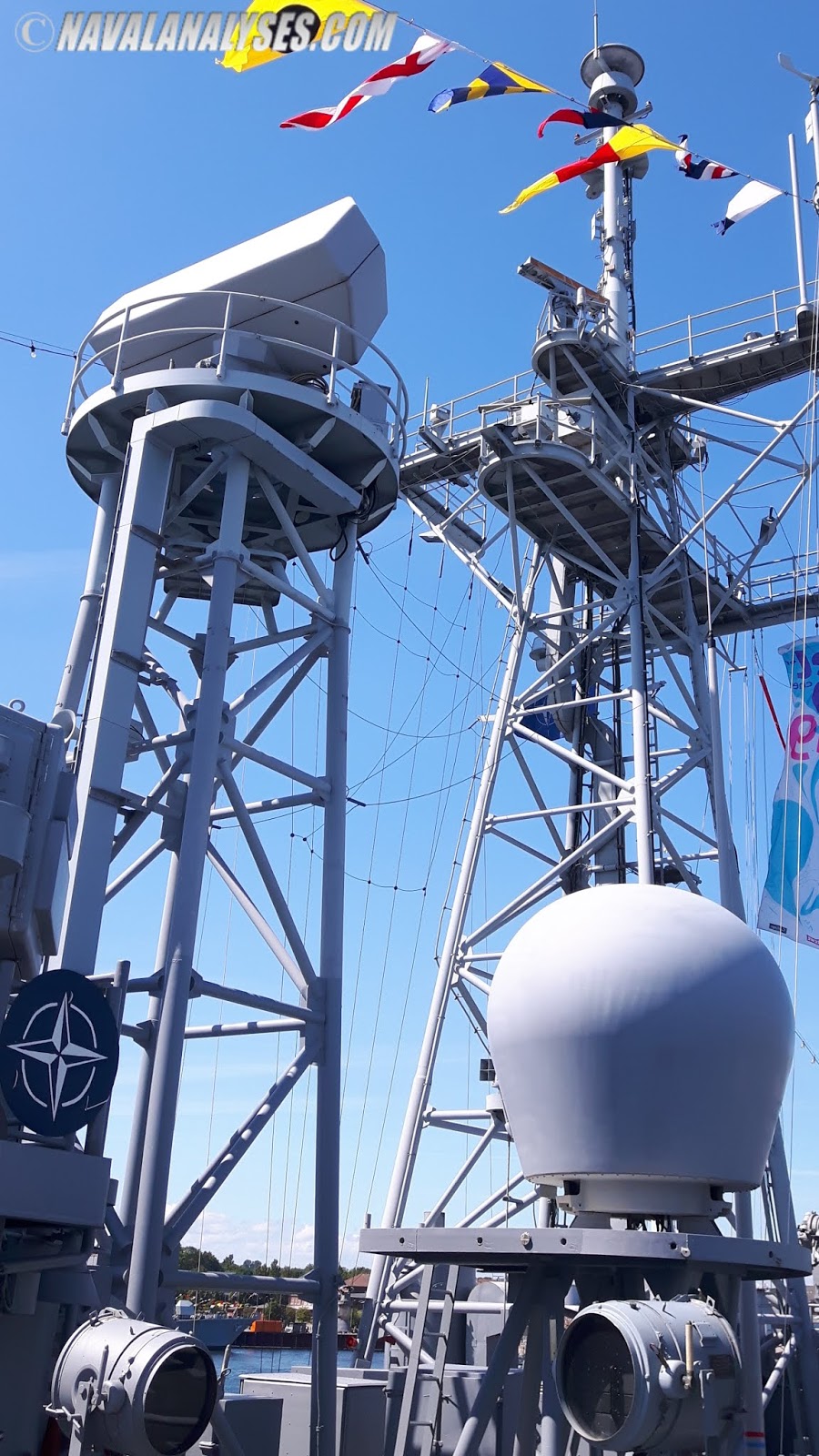

SMART-S Mk2 3D radar
SMART, SPS-55 and SATCOM

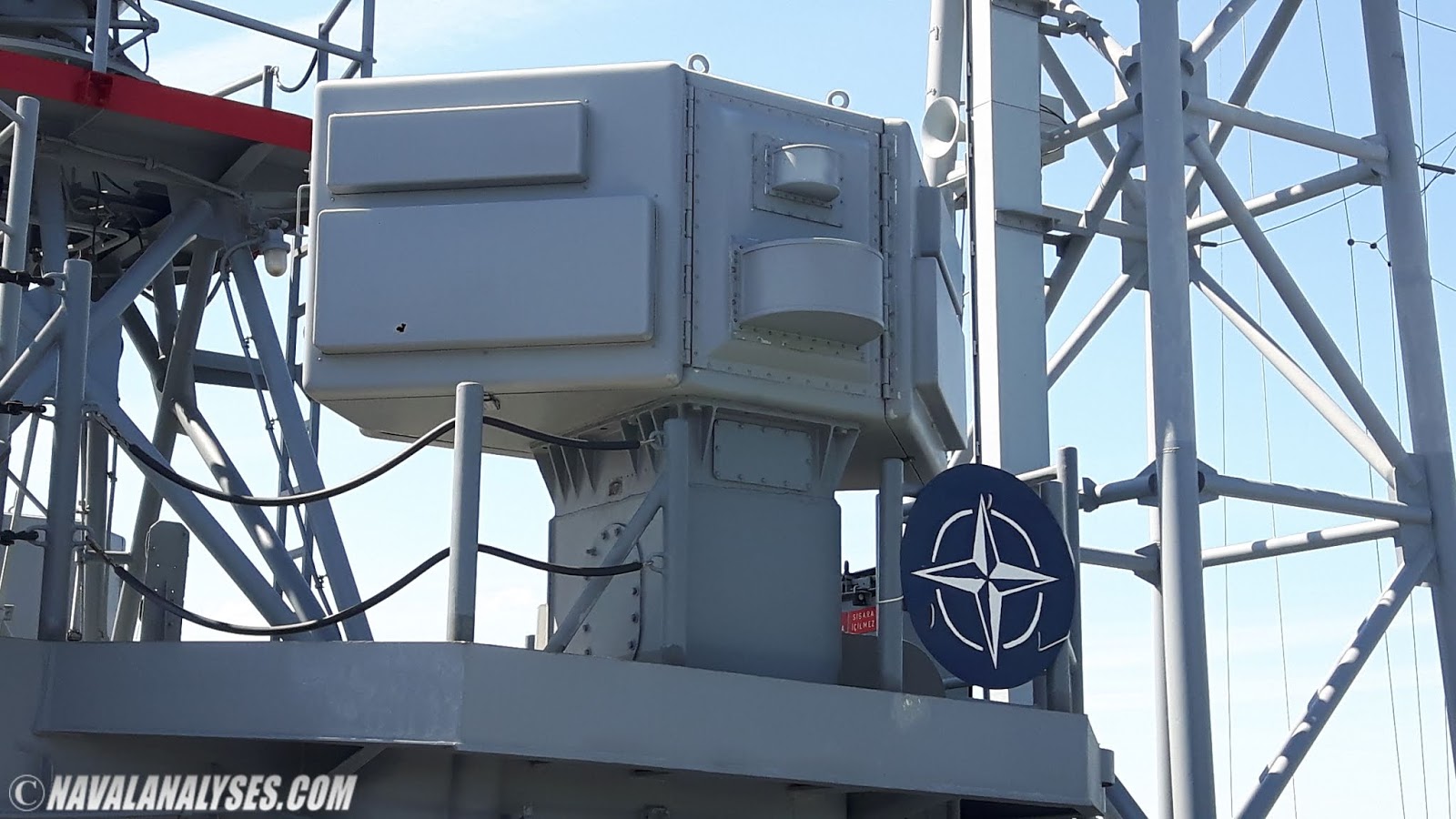

Turkish AN/SLQ-32 EW suite








Polish AN/SLQ-32 EW suite

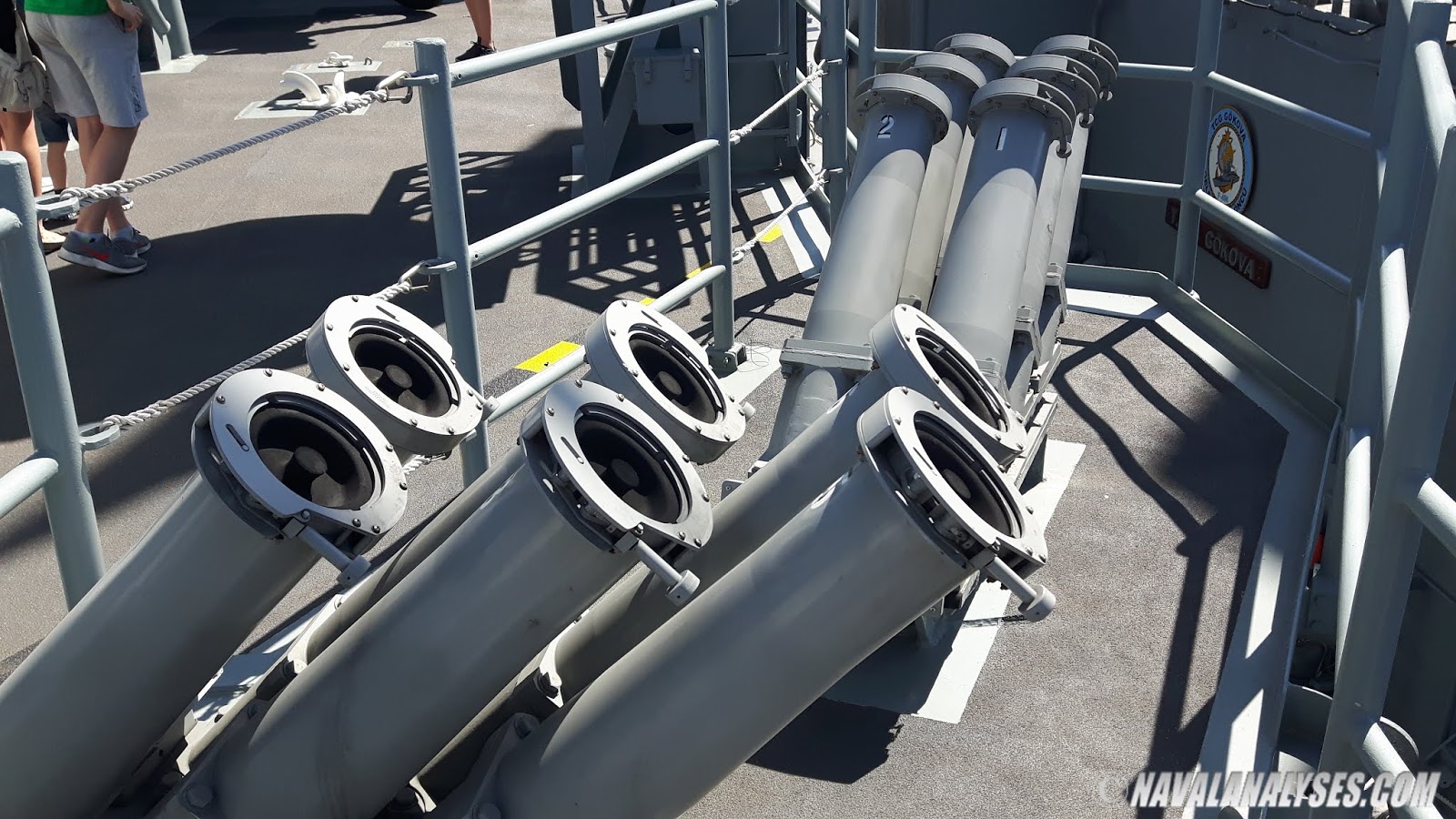

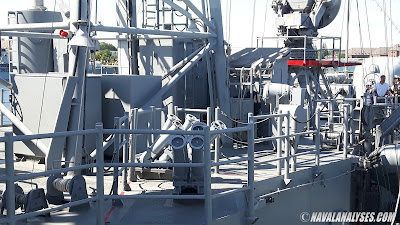

Two Mk32 SRBOC launchers

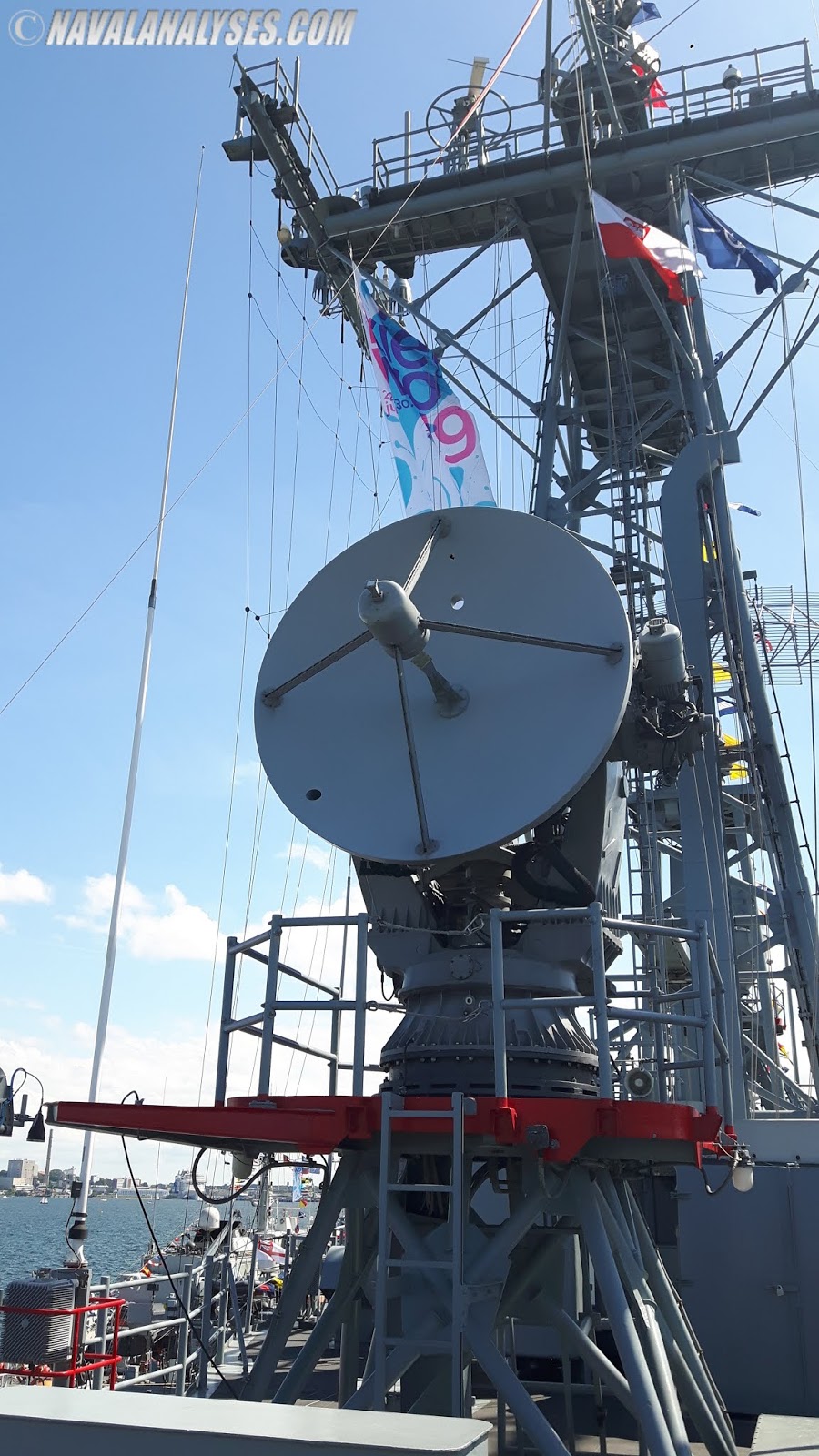

AN/SPS-49 of the Polish ship
At the top of the mast, the SPS-55



The different SATCOM
terminals between the two ships

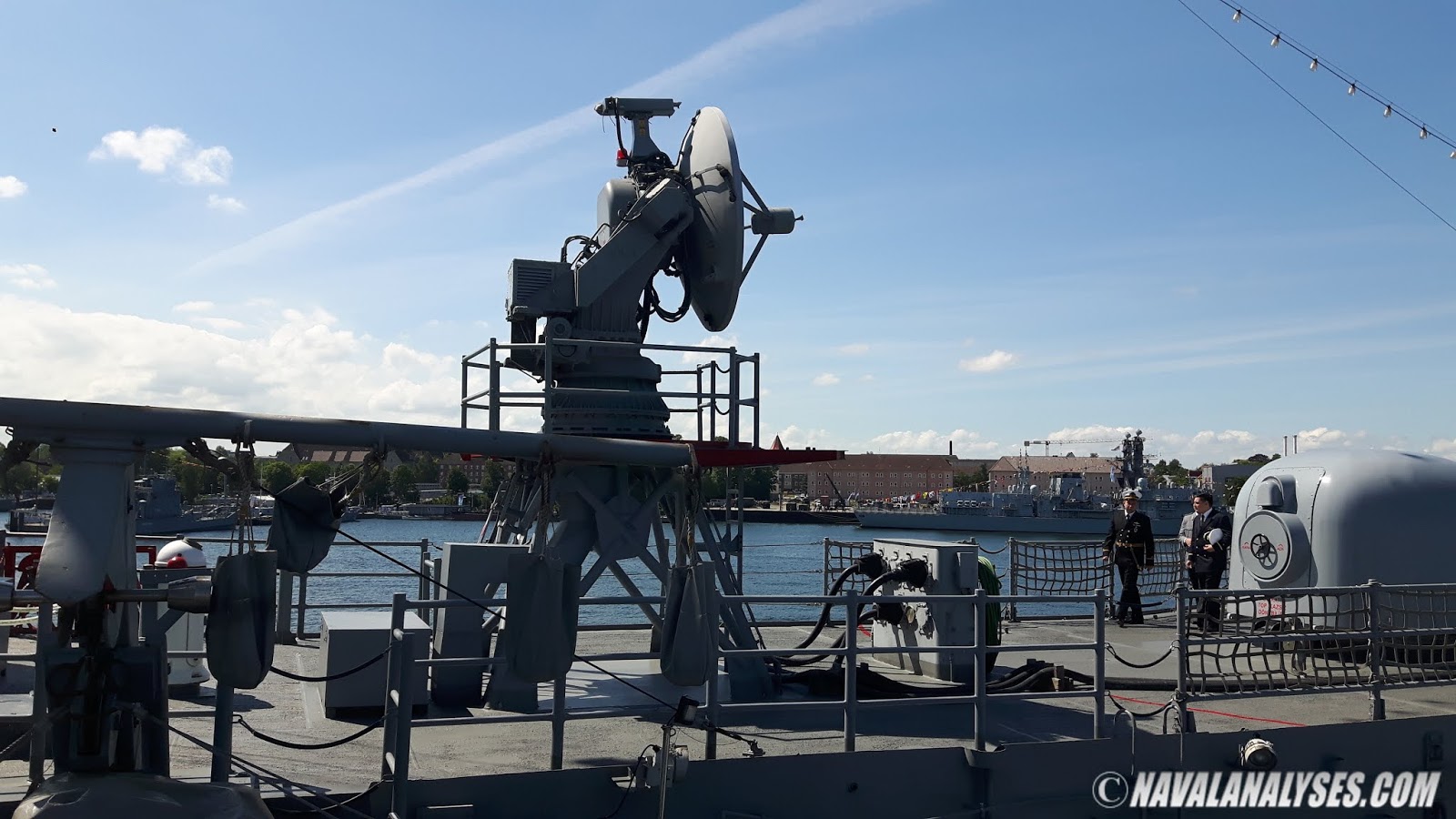

Mk92 radar/FCS
Improved Mk54 FCS
Improved Mk54 FCS

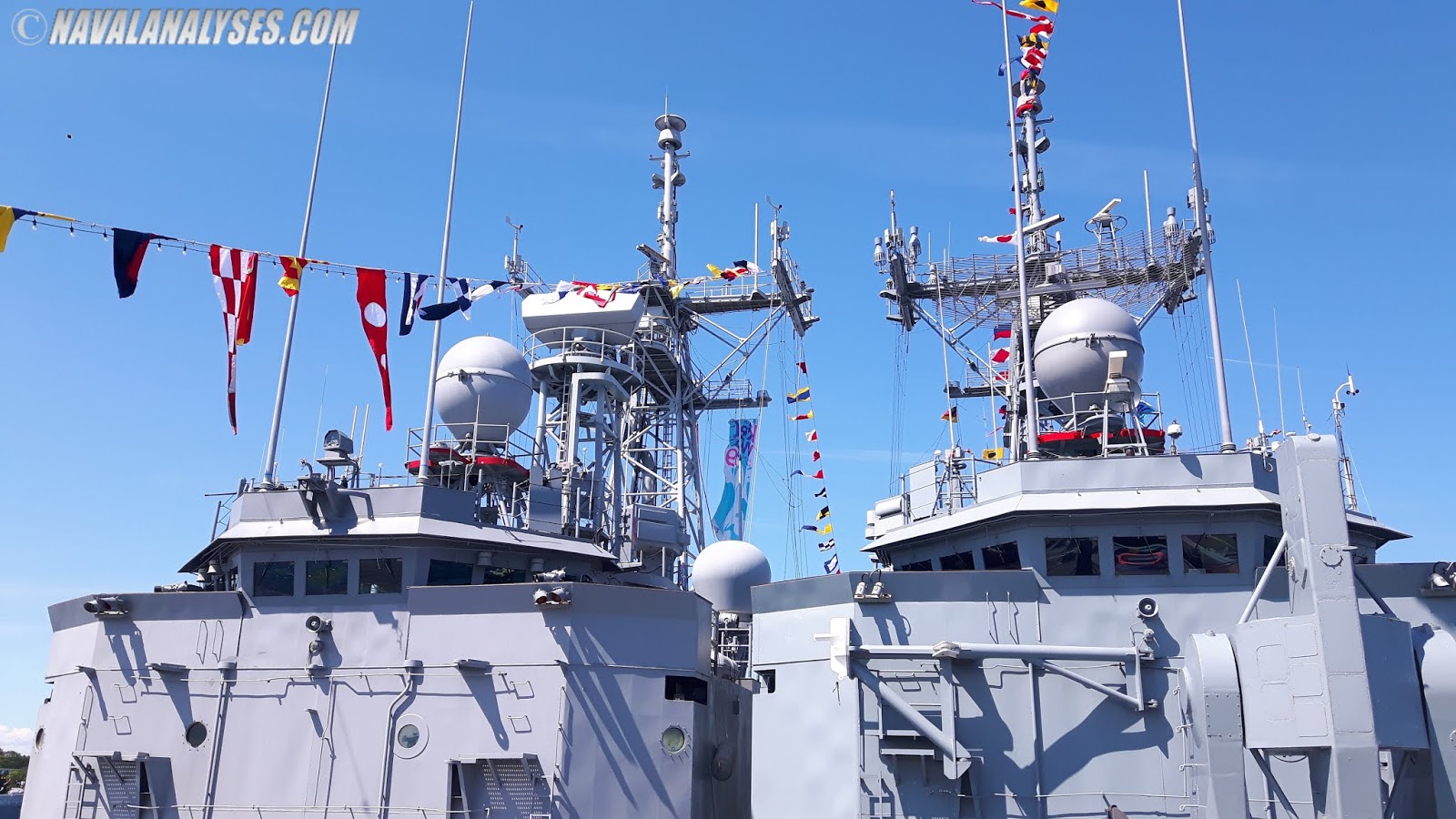

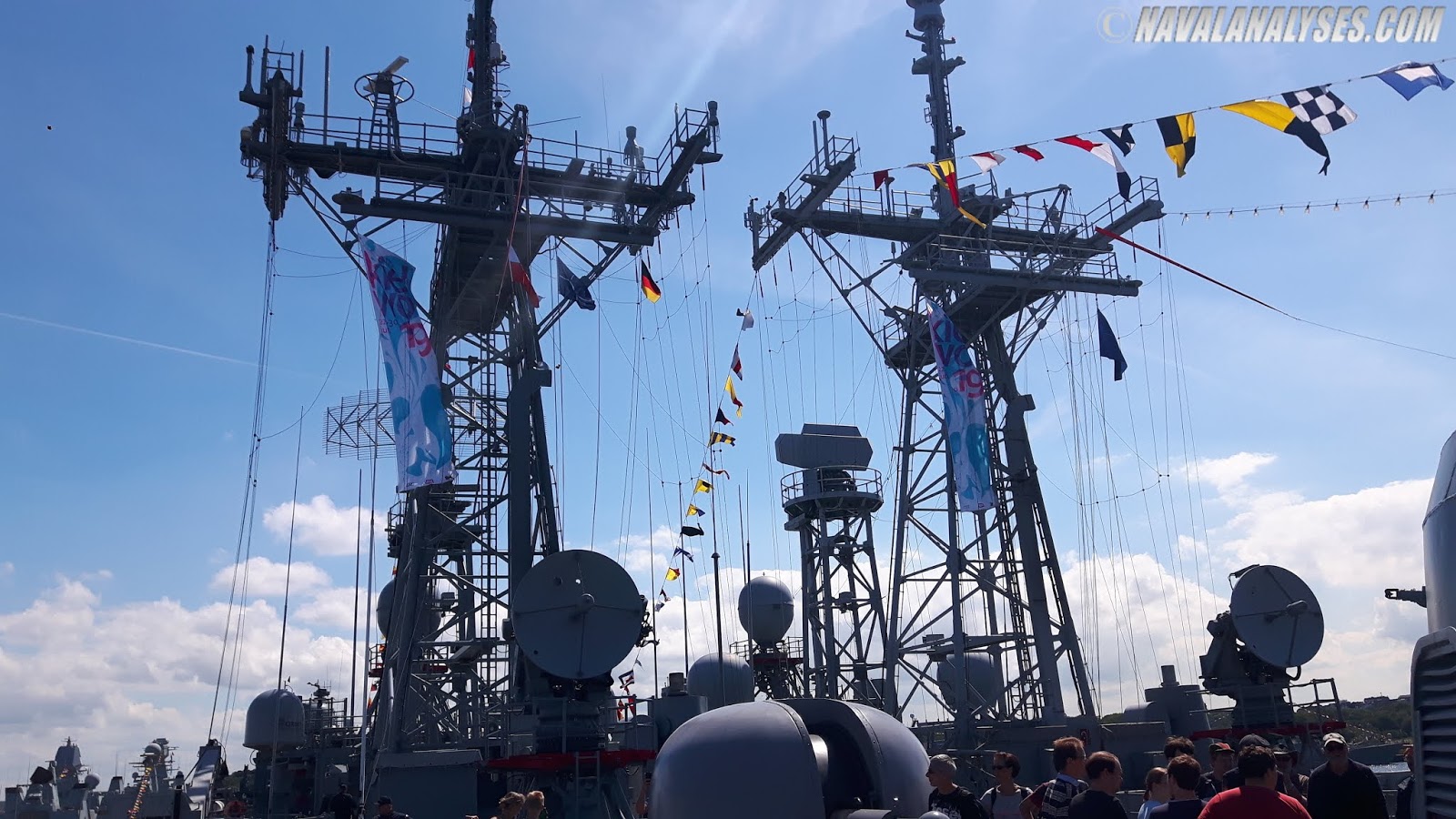

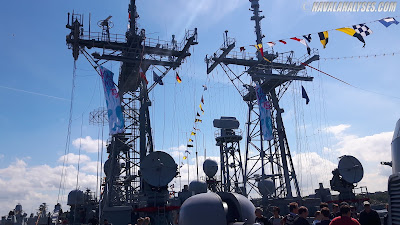

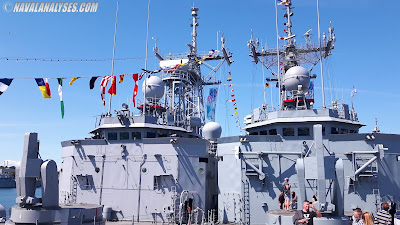

The two masts









SRBOC launchers of the Polish ship






SRBOC launchers of the Polish ship

Triple Mk32 TT of Gokova

One of the RIBs of Turkish frigate Gokova

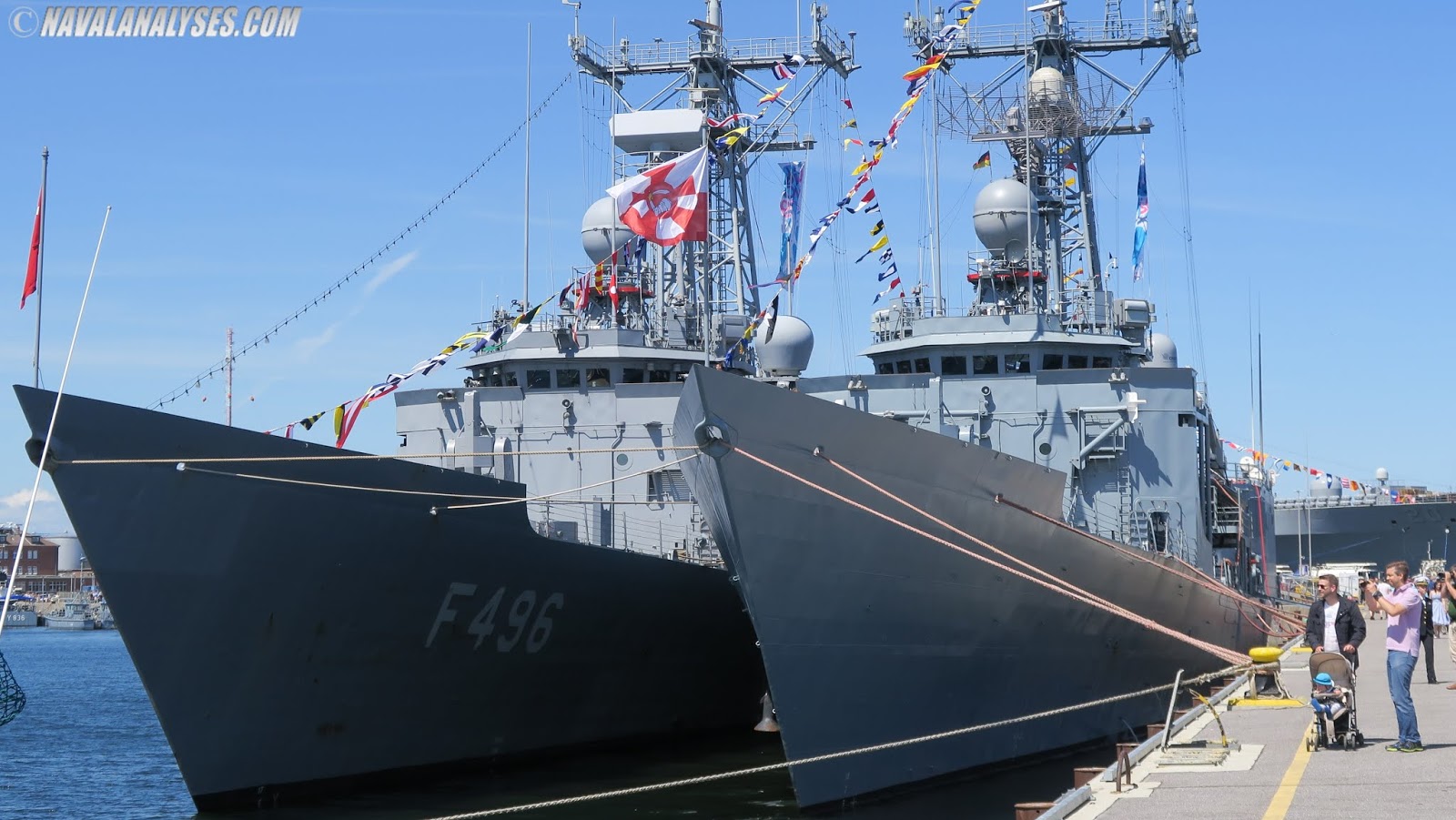

View of the two ships
View of the ships
The Mk54 (STIR) with EO sensor








The Polish STIR FCS
Turkish 3in gun and STIR FCS

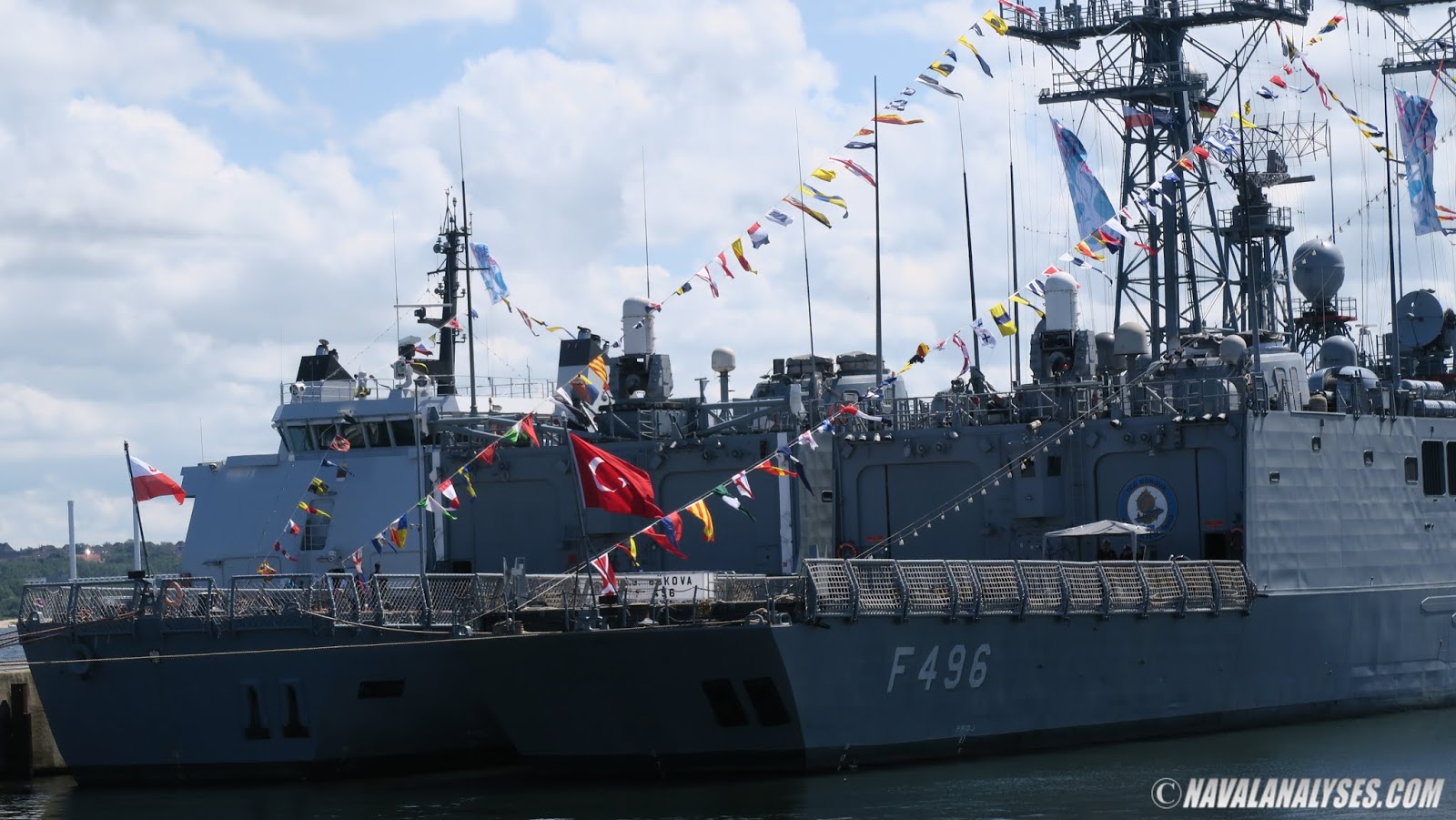

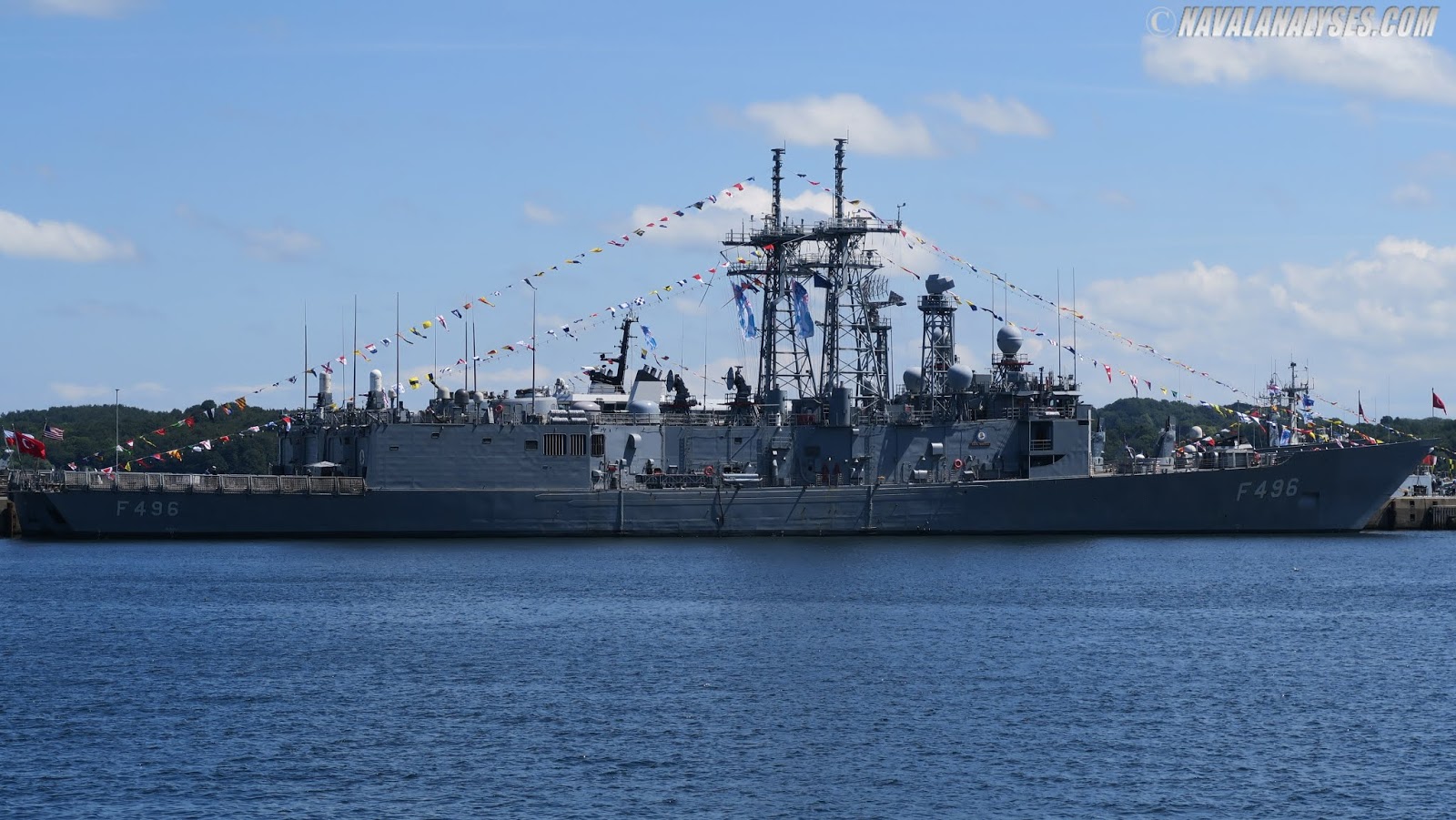

The Gokova frigate

One of the 12.7mm HMGs of Gokova

One of the 12.7mm HMGs of Gokova















Various of telecommunication radomes atop the hangar of Gokova

Phalanx CIWS of Gokova
The two frigates of the same type

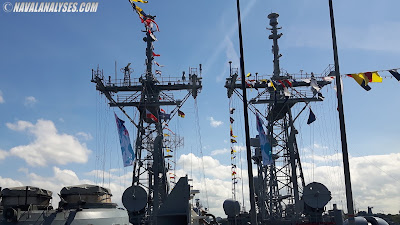

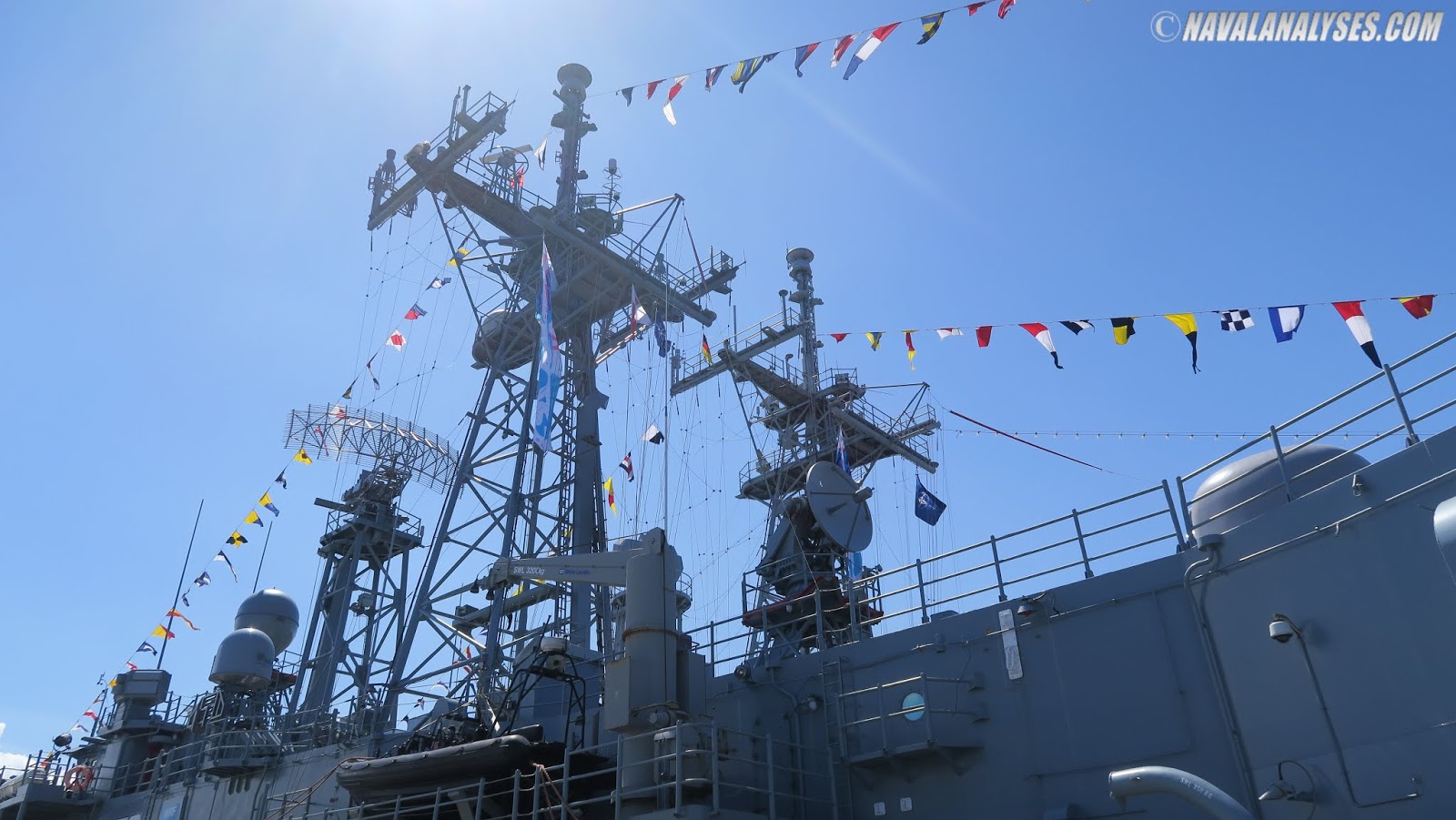

Details of their masts

Another view of the ships

Another view of the ships as seen from the Polish vessel

OTO Melara 3in gun
Mk75 76/62mm gun
Mk75 76/62mm gun
Mk75 76/62mm gun













Phalanx CIWS
Phalanx CIWS
Phalanx CIWS
Mk54 FCS

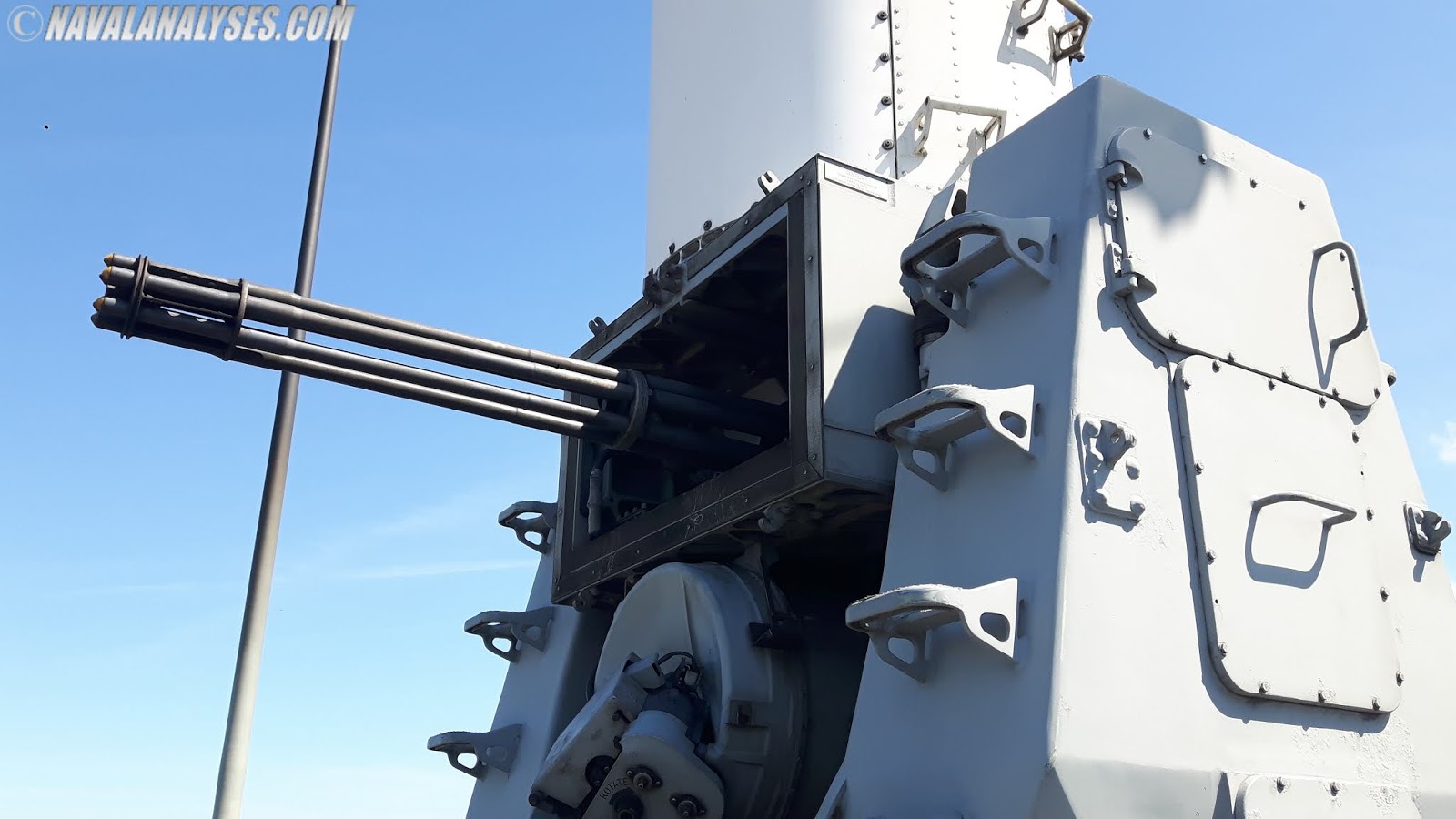

The 6-barrel 20mm gatling gun of Phalanx CIWS

The 76mm gun of Pulaski
One of the RIBs of Pulaski








The two frigates
The two frigates

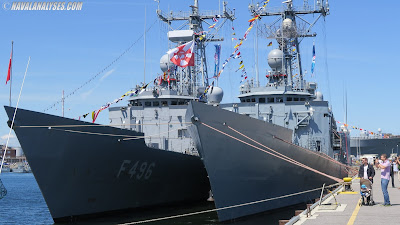

The two frigates

The two frigates

The portholes of AN/SL-Q-25 NIXIE

Portholes of NIXIE system at the sterns





















Forward of the two frigates had anchored the patrol vessel Thetis
